Professional Irrigation Water Pump & Motor manufacturer/supplier in China
With 20 years of expertise in advanced pump, motor, and fluid system technologies, we are dedicated to providing reliable, cost-effective, and eco-friendly solutions to meet your specific needs.
ZHEJIANG JINGONG PUMP TECHNOLOGY CO., LTD
What Do We Provide
Surface Pump Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
This booster pump is equipped with a 115V 1.6HP high-efficiency motor, boasting high flow rate and high head. It features a pressure tank, automatic start/stop, overheat protection, and heat dissipation design. The stainless steel pump head and cast aluminum pump casing are robust and durable, making it suitable for shallow well water supply and irrigation in homes, gardens, and farms.
- Equipped with a 1.6HP high-efficiency motor, rated voltage 115V, and a durable custom impeller; the maximum flow rate reaches 1268GPH, and the maximum head is 157FT, providing powerful performance and high water delivery efficiency, perfectly suited for large-scale farm irrigation and daily household water supply needs.
- Standard configuration includes a pressure gauge and pressure tank (6-gallon standard configuration, 5-gallon practical configuration), allowing for real-time and intuitive monitoring of working pressure; built-in intelligent automatic pressure switch, automatically starts at 20PSI and automatically stops at 40PSI, requiring no manual intervention, providing fully automatic constant pressure water supply for worry-free water use.
- Safety Protection: Built-in automatic thermal overload protection device with a water shortage dry-run shutdown sensing function; automatically shuts off power when water shortage or overheating is detected to prevent motor burnout; dedicated heat dissipation holes at the pump body tail quickly expel internal heat, reducing the machine’s temperature and ensuring long-term safe and stable operation.
- Materials and Craftsmanship: The pump head is made of stainless steel, which is rust-proof, corrosion-resistant, and resistant to water erosion; the pump casing is made of cast aluminum in one piece, which is sturdy, pressure-resistant, and durable; it is equipped with a reinforced and stable base to reduce vibration and prevent shaking and deviation during operation. The whole machine is solidly constructed and meticulously crafted, with a long service life, low failure rate, and reliable for long-term outdoor use.
- Caliber: 2 inch
Dimension：490×385×410 mm

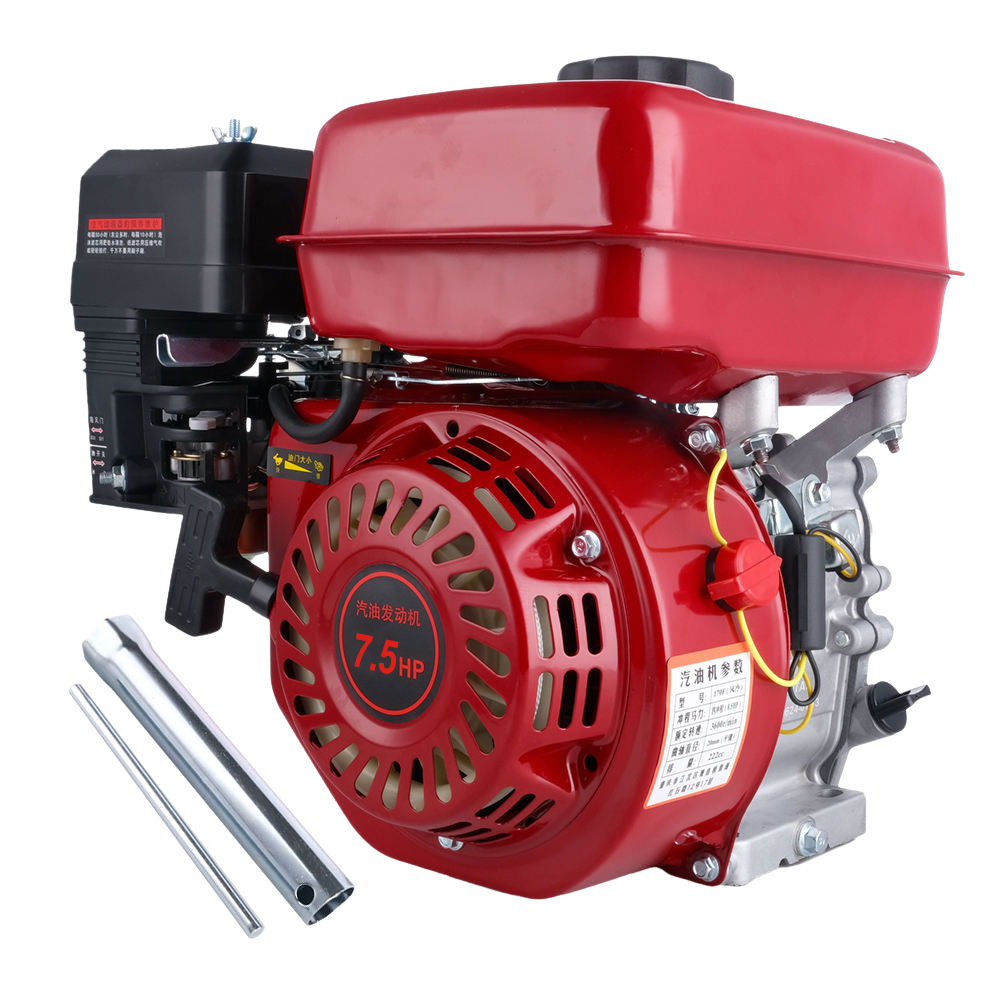

Engine：170F
Flow：30 m³/h
Head：26 m
Weight：23.6 KG - Caliber: 3 inch
Dimension：510×385×430 mm
Engine：170F
Flow：60 m³/h
Head：30 m
Weight：25 KG - Caliber: 4 inch
Dimension：540×410×480 mm
Engine：170F
Flow：80 m³/h
Head：30 m - Caliber: 6 inch
Dimension：805×565×680 mm
Engine：192F
Flow：120 m³/h
Head：25 m
Weight：73 KG

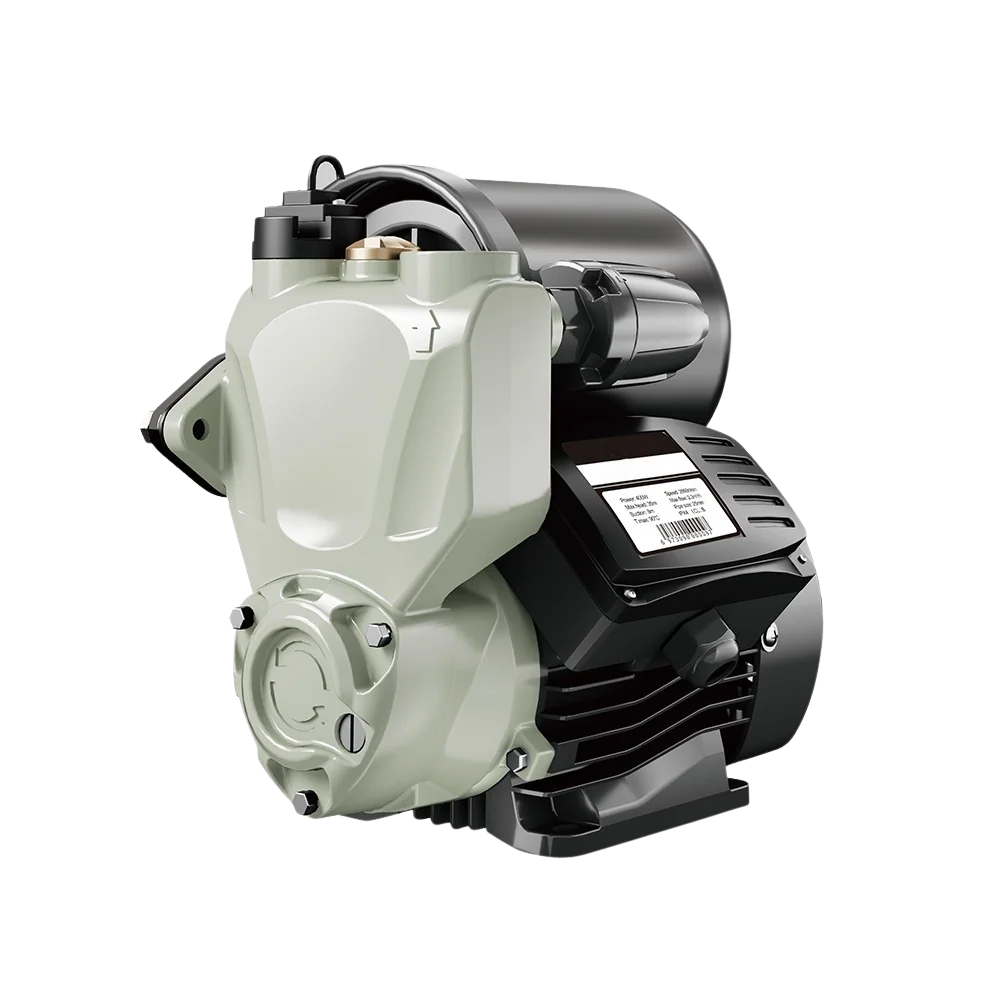

The automatic booster systems consist of a JET water pump, peripheral pump of centrifugal pump, with a pressure tank, an airtight pressure switch, a pressure gauge and connecting flexible pipe.Make the pump automatic, thus to apply more convenient. The pressure tank equipped with a non-toxic rubber membrane, has been pre-filled with air pressure of approx 0.12MPa before leaving the workshop.
These systems give suitable mains water pressure as required by modern domestic applications and industrial applications, and will ensure enough water supply all user outlets. Most of the pumps included in our range of products can actually be used to form automatic booster systems.
1.The pump have a compact size and simple to use.
2.Heavy duty continuous work.
3.Ambient temperature up to 40º C.
4.The thermal protector is installed if required.
5.The shaft is 45# steel or stainless steel and not easy to rust.
6.220-240V 50Hz power which is safer for your using.
7.The stator is 100% copper wire with high quality.
This Agriculture Irrigation Gasoline Water Pump boasts a large flow rate of 32m³/h and a total head lift of 30M. It features quick power start, smooth operation, and low fuel consumption. It is compact, reliable, and versatile The hand control starting system and durable construction make it ideal for demanding agricultural and industrial applications. outdoor construction, and industrial fire protection. With CE certification, offers quality control services, and can provide full customization, design-based customization, and sample customization.
Submersible pumps
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
The VMP Electrical Vibration Pump is an indispensable tool for effectively pumping water from deeper wells. Its robust construction and durability make it ideal for use in challenging terrain. The type hand pump features a special electromagnetic motor, ensuring reliable operation and efficient water pumping. This pump ensures access to water even in locations where other pumps might struggle to reach deeper wells. With its ability to operate at various water depths, the pump is ideal for domestic use, as well as in industrial and agricultural applications. Its drainage efficiency, corrosion resistance, and ease of use make it indispensable in many situations.
PUMP TECHNICAL DATA:
– Voltage: 220-240VAC/50Hz
– Maximum suction depth: 8m
– Maximum discharge height: 40m
– Maximum particle size: 1mm
– Maximum liquid temperature: 35°C
– Pump diameter: 10cm
– Height: 28cm
The pump has a 3-wire cable.
Key Product Features:
-> High-Quality Product Construction
-> Capable Of Pumping Different Sizes Of Contaminants
-> Efficiency During Water Discharge
-> High Operational Efficiency
-> The Pump Is Corrosion-Resistant
-> Long Cable Power
-> The Pump Is Suitable For Operation At Various Depths
-> The Pump’S Durable Construction Ensures A Long Life
WARNING! BEFORE STARTING THE PUMP, PLACE IT IN WATER! THE PUMP MUST NOT BE RUNNING DRY!

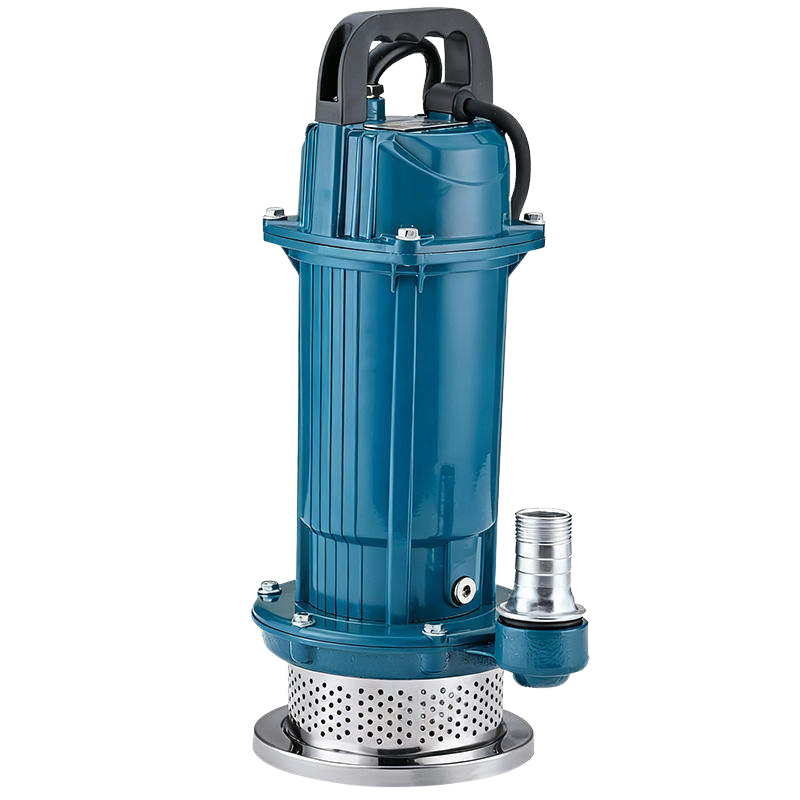

The QDX submersible pump has a compact structure, small size and does not take up much space. It is a small submersible pump with high flow rate and can be easily installed in various swimming pools, ponds, wells and other places.
The QDX Series Vertical Submersible Pump is a versatile and efficient solution designed for a wide range of water drainage applications. With a maximum immersion depth of 5 meters, this pump is ideal for use in water cluster boxes, farmland irrigation, industrial and mining enterprises, construction sites, ships, and household applications. Compact, lightweight, and easy to install, the QDX Series delivers efficient, reliable performance in diverse conditions, making it an excellent choice for both professional and personal use.
Key Features:
- Durable Construction: Features a cast iron pump body and aluminum impeller for long-lasting performance in demanding environments.
- High-Temperature Resistance: Capable of handling fluid temperatures up to +35°C and operating in liquid environments ranging from -40°C to +40°
- Reliable Motor: Equipped with copper windingand available in single-phase or three-phase configurations for continuous operation. The motor housing is made of aluminum, ensuring lightweight yet robust performance.
- Corrosion-Resistant Shaft: Options include a stainless welded shaft or electroplated 45# steel shaft for enhanced durability.
- Advanced Sealing System: Double sealing structure and static ring press plate form prevent leaks and extend service life.
- Waterproof Design: Rated IPX8 for complete waterproof protection, with an epoxy-sealed cable cap cover for secure connections.
Applications:
Drainage in agricultural fields, construction sites, and industrial facilities
Water transfer in residential, marine, and mining environments
Suitable for clean or slightly contaminated water
Solar Pumps Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.

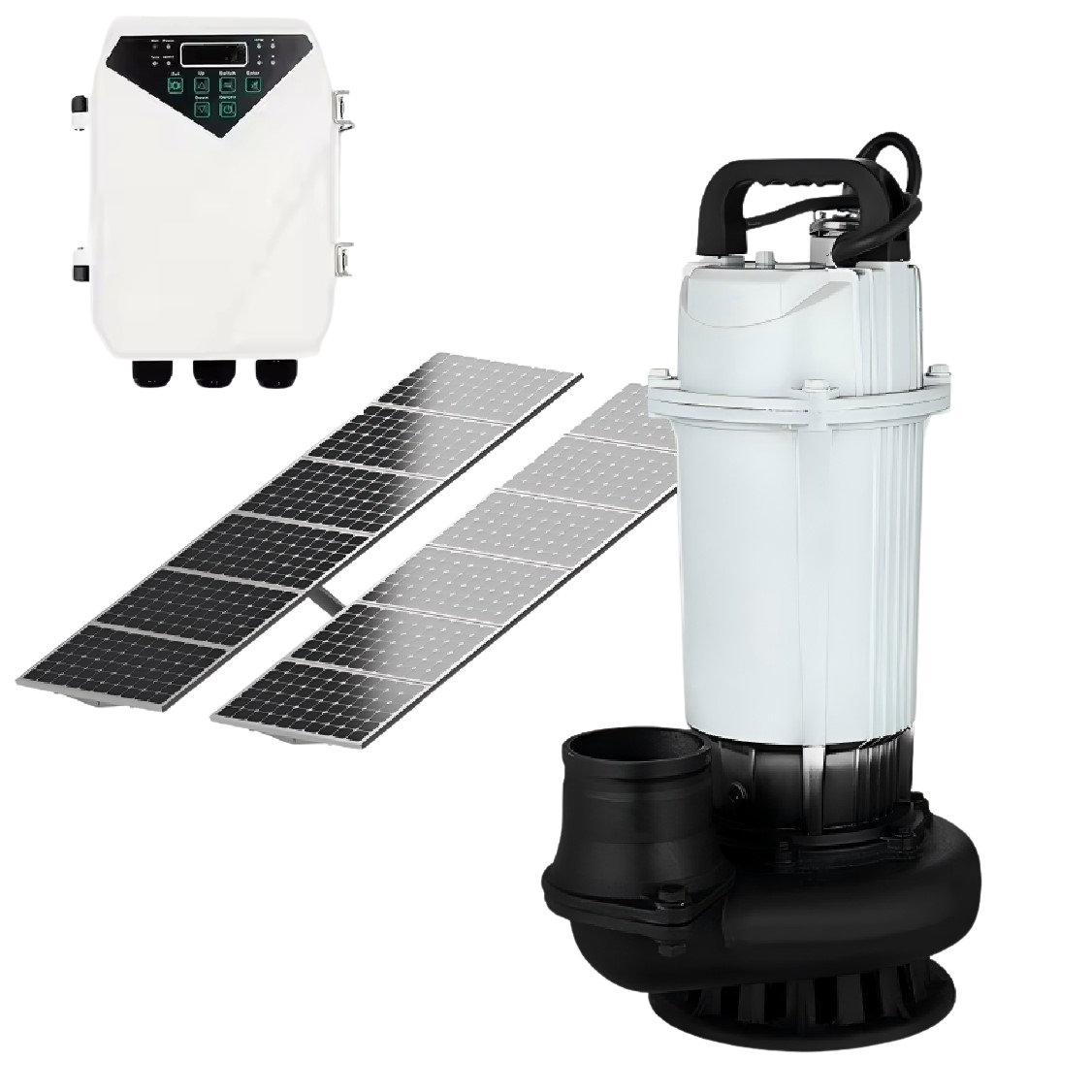

Harness the power of the sun with our high-efficiency AC/DC Solar Submersible Pump, designed to deliver reliable water supply in sun-rich regions, especially in off-grid and remote areas. Ideal for domestic water use, agricultural irrigation, and garden watering, this pump operates silently underwater, offering an eco-friendly and cost-effective solution.
Key Features:
✔ Stainless Steel (S/S) Construction – Corrosion-resistant outlet, oil cylinder, and connections ensure longer service life and superior durability.
✔ Permanent Magnet DC Brushless Motor – Boosts efficiency by 15-20% compared to conventional pumps, reducing energy waste.

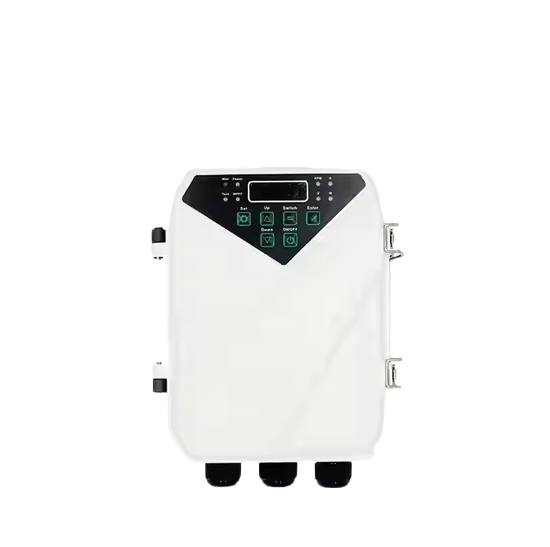

✔ Integrated DSP & MPPT Technology – Maximizes solar power utilization with 95-98% tracking efficiency, adapting to varying sunlight conditions.
✔ Wide DC Voltage Compatibility – Flexible operation across a broad voltage range for consistent performance.
✔ Intelligent Water Shortage Protection – Automatically shuts off when water levels are low, preventing dry-run damage.
✔ Hot Water Compatibility – Suitable for pumping hot water, expanding its application versatility.

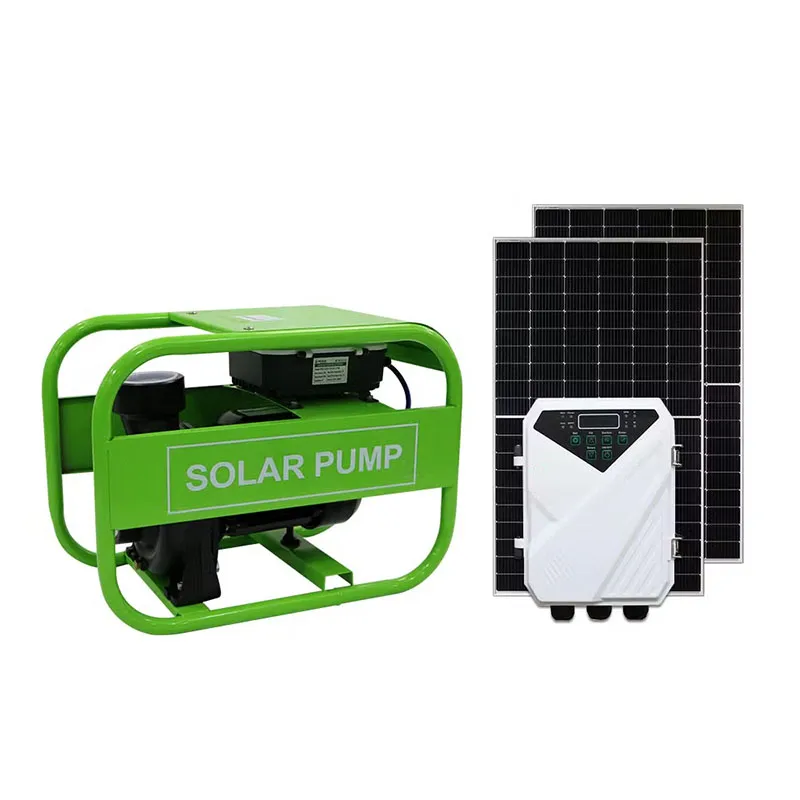

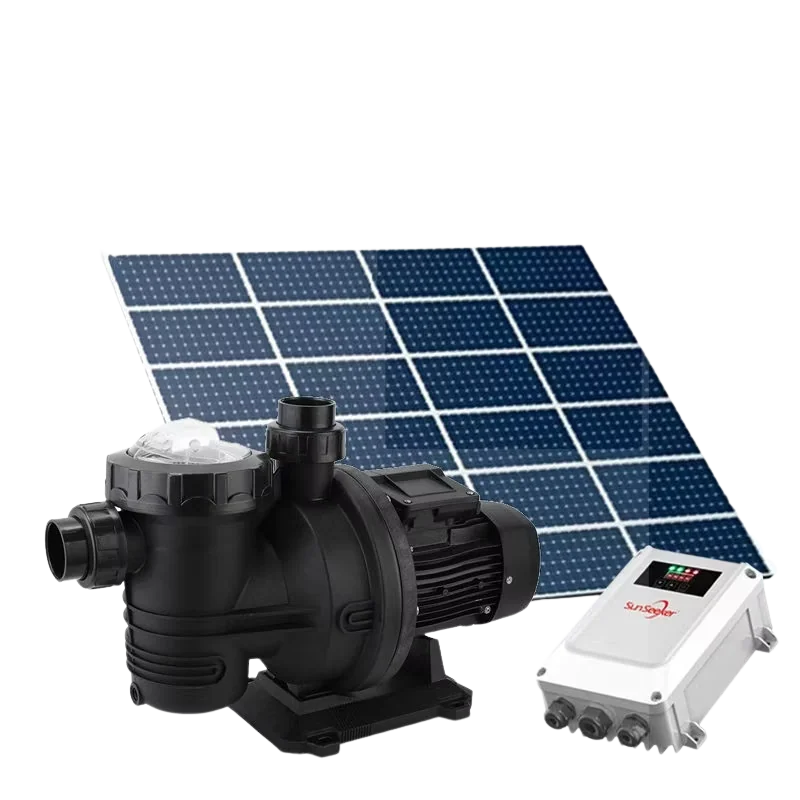

Harness the limitless energy of the sun with the Solar Water Pumping System, a fully integrated, off-grid solution designed to deliver water efficiently without relying on traditional power infrastructure. Ideal for remote locations, agricultural irrigation, drinking water supply, and more, our system eliminates the need for grid electricity or diesel generators by optimizing solar energy for consistent, high-performance water pumping. At the core of the system is an advanced MPPT controller, which intelligently manages operations, analyzes real-time inputs, and adjusts pump parameters to maximize water output—even as solar conditions fluctuate throughout the day. Enhance flexibility with integrated water storage, allowing you to store surplus water to meet seasonal demand or overnight usage without backup power. Go green, cut costs, and pump water anywhere—powered entirely by the sun.

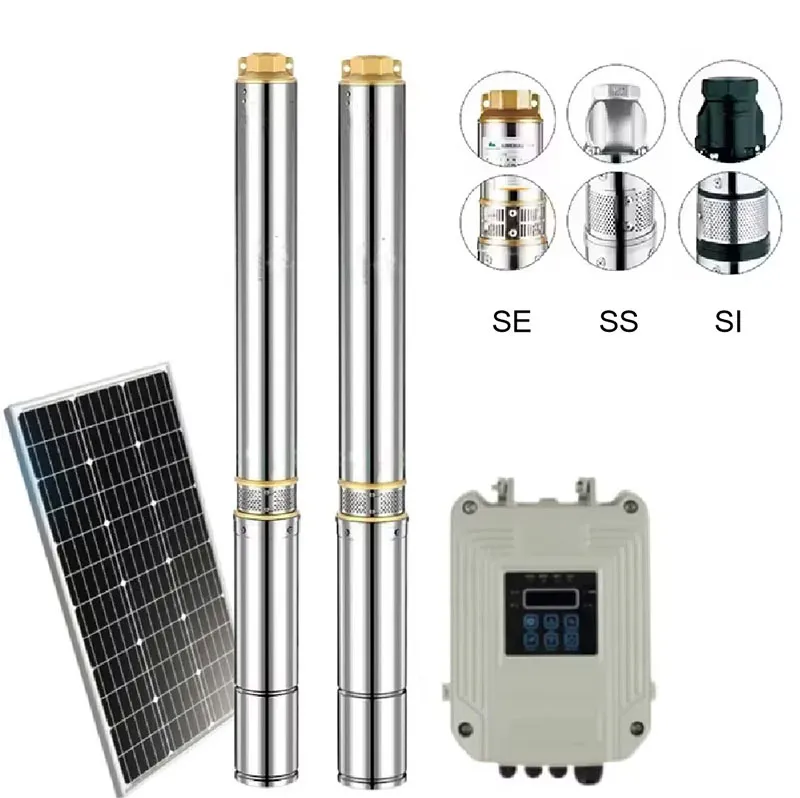

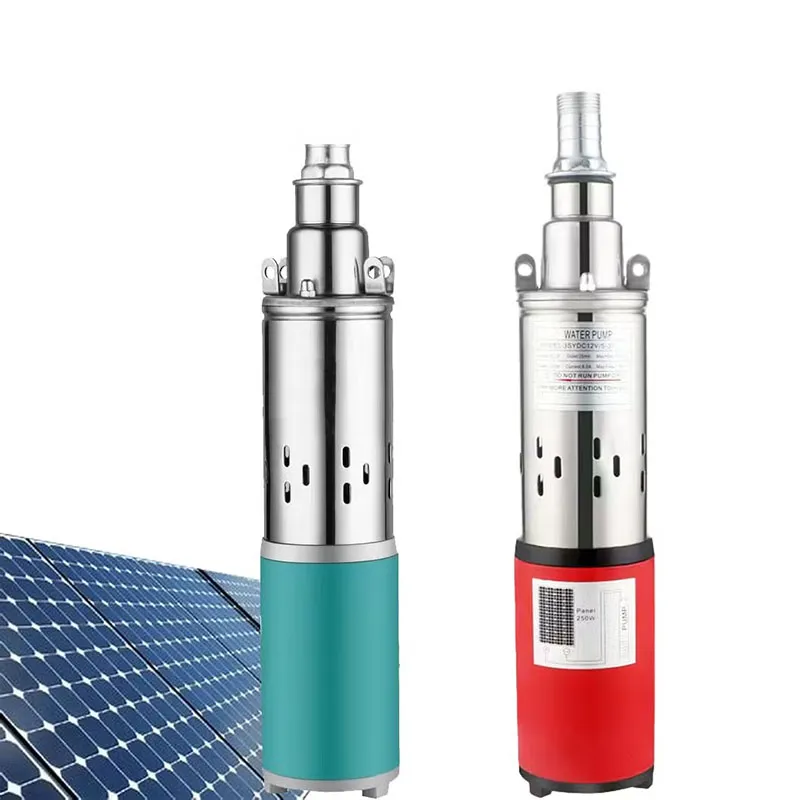

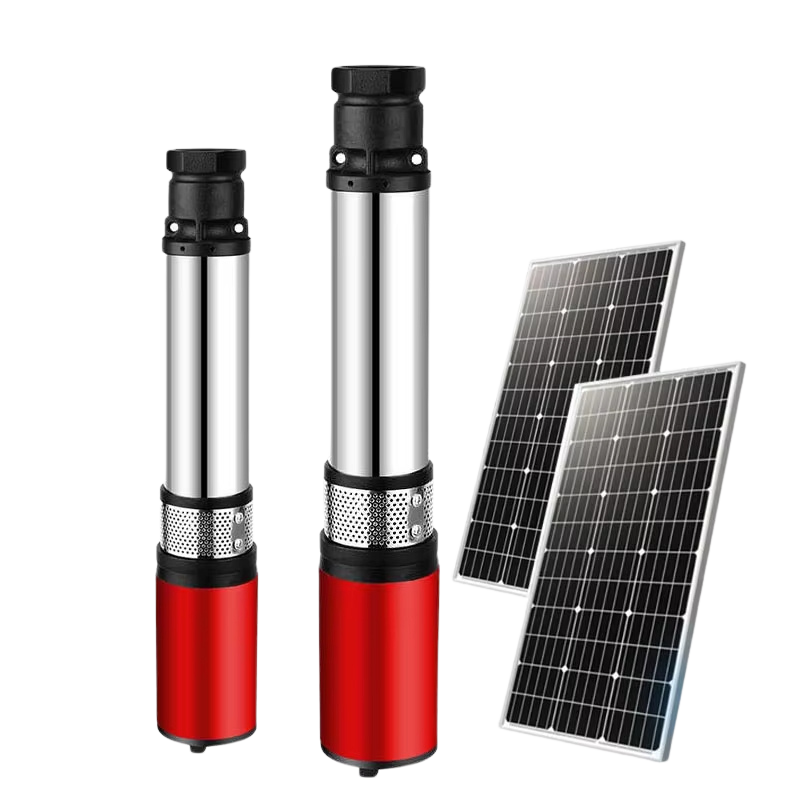

Upgrade your water pumping system with our high-performance 3-inch stainless steel solar submersible pumps, designed for deep wells and boreholes. Featuring a brushless DC motor and 304 stainless steel screw impeller, these pumps ensure long-lasting durability, corrosion resistance, and high efficiency even in harsh conditions.
Key Features:
✔ Solar-Powered Operation – Works seamlessly with solar panels for off-grid water supply, reducing energy costs.
✔ Stainless Steel Impeller – Resists rust and wear, ensuring smooth, low-maintenance performance.
✔ Submersible Design – Ideal for boreholes, irrigation, livestock watering, and remote water supply.
✔ Brushless DC Motor – Provides quiet, energy-efficient operation with extended lifespan.
Perfect for farmers, off-grid homes, and remote projects, these solar pumps offer a reliable, eco-friendly solution for consistent water flow. Choose between 3-inch and 4-inch models to match your well size and flow requirements.
High-performance submersible pump with a 2-inch stainless steel body, built for durability and efficiency. Features include a brushless DC motor, intelligent protection (water shortage, high voltage, over-current, high temperature), and an MPPT controller for solar power optimization.
Key Features:
Brushless DC Motor: Ensures longer lifespan, lower energy consumption, and quieter operation compared to traditional pumps.
Intelligent Protection System: Safeguards against water shortage, high voltage, over-current, and high temperature, preventing damage and ensuring safe operation.
MPPT Solar Power Optimization: Equipped with a Maximum Power Point Tracking (MPPT) controller to maximize solar energy efficiency, making it ideal for off-grid and renewable energy applications.
High-Efficiency Design: Optimized hydraulic performance for low power consumption with high output, reducing operational costs.
Versatile Applications: Perfect for agricultural irrigation, water supply systems, solar-powered projects, and industrial fluid transfer.
Deep Well Pump Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
This solar-powered submersible pump is driven by a high-performance DC brushless motor, designed to draw water from wells, rivers, or reservoirs and deliver it directly to irrigation systems, storage tanks, or fountain systems. As a key component of solar water pumping solutions, this pump ensures economic efficiency and system stability, maximizing water output with minimal energy consumption. Featuring a permanent magnet brushless motor, the pump achieves 15-20% higher efficiency than conventional models, significantly reducing solar panel requirements while extending operation time. Its 304 stainless steel shaft, copper water outlet, and alloy mechanical seal ensure durability and corrosion resistance, making it ideal for long-term use in harsh environments.
The QGD Series Stainless Steel Submersible Water Pump is a high-performance, durable, and efficient electric pump designed for deep well water extraction. Built with corrosion-resistant stainless steel components, this pump ensures long-lasting operation in demanding environments. Its single-screw (helical rotor) impeller design provides smooth and consistent water flow, making it ideal for domestic, industrial, irrigation, and garden applications.
Key Features:
✔ Premium Stainless Steel Construction: Outlet made of AISI201SS, motor shaft in AISI304SS, ensuring rust resistance and durability.
✔ Screw Impeller Design: Delivers steady water flow with minimal turbulence, suitable for wells with low to moderate sand content (up to 0.25%).
✔ High-Quality Sealing System: Features graphite-ceramic mechanical seals and 10# white oil lubrication for leak-proof performance.
✔ Deep Well Capability: Can be submerged up to 120 meters, perfect for boreholes with a minimum diameter of 3″ or 4″.
✔ Rewindable Motor: Single-phase motor operates at 180V-240V / 50Hz, paired with a start-up control box for safe and efficient performance.
SKM series pumps are suitable for extraction from deep water well, hot water well and ocean, also can be used for river, reservoir, canal and so on. It is mainly used for irrigation of farmland and water for human and animal in plateau and mountainous areas. It can also be used for water supply and drainage in cities, factories, railways, mines and construction sites.
Application Limits：
Max. ambient tempersture < 40ºC;
Sand content (in mass fraction) up to 0.01%;
Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
PH: 6.5 to 8.5;
Maximum: 70m below the static water table.
The SR series is specifically designed as a 6-inch electric submersible well pump, built for durability with a cast iron base, connectors, and outlet.
This robust pump series is ideal for agricultural irrigation, as well as civilian and commercial water supply, offering reliable performance and long-lasting durability in demanding environments.
Application
For water supply wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
Features
High efficiency performance
High assembly accuracy ensures reliability
Long service life for lasting performance
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
1-Direct start (1 cable)
2-Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO9906
Gasoline&Diesel Water Pumps
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
- Caliber: 2 inch
Dimension：490×385×410 mm
Engine：170F
Flow：30 m³/h
Head：26 m
Weight：23.6 KG - Caliber: 3 inch
Dimension：510×385×430 mm
Engine：170F
Flow：60 m³/h
Head：30 m
Weight：25 KG - Caliber: 4 inch
Dimension：540×410×480 mm
Engine：170F
Flow：80 m³/h
Head：30 m - Caliber: 6 inch
Dimension：805×565×680 mm
Engine：192F
Flow：120 m³/h
Head：25 m
Weight：73 KG

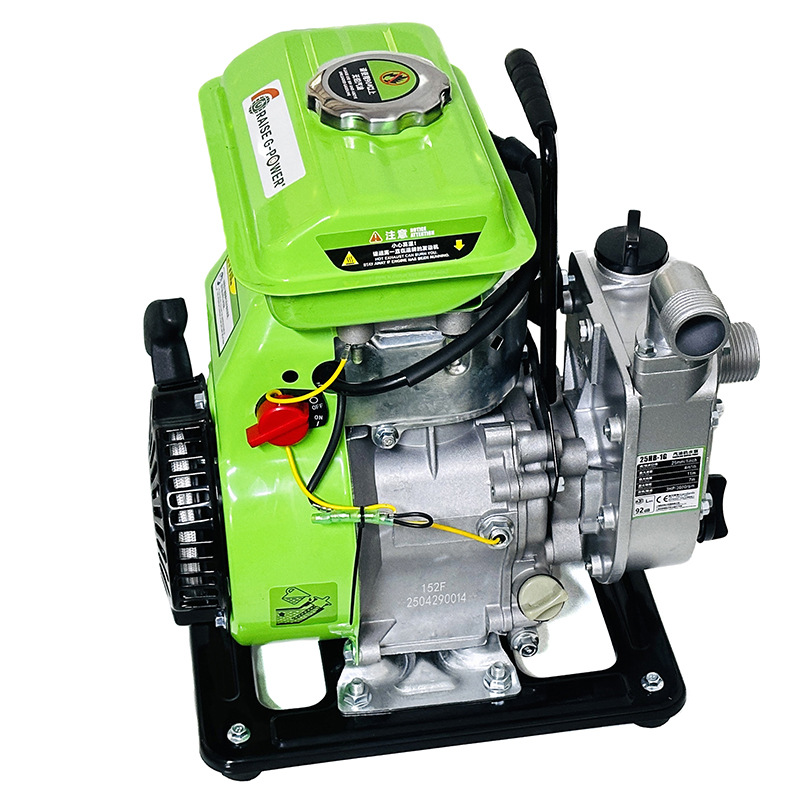

This Agriculture Irrigation Gasoline Water Pump boasts a large flow rate of 32m³/h and a total head lift of 30M. It features quick power start, smooth operation, and low fuel consumption. It is compact, reliable, and versatile The hand control starting system and durable construction make it ideal for demanding agricultural and industrial applications. outdoor construction, and industrial fire protection. With CE certification, offers quality control services, and can provide full customization, design-based customization, and sample customization.
Pipeline Centrifugal Pump Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.

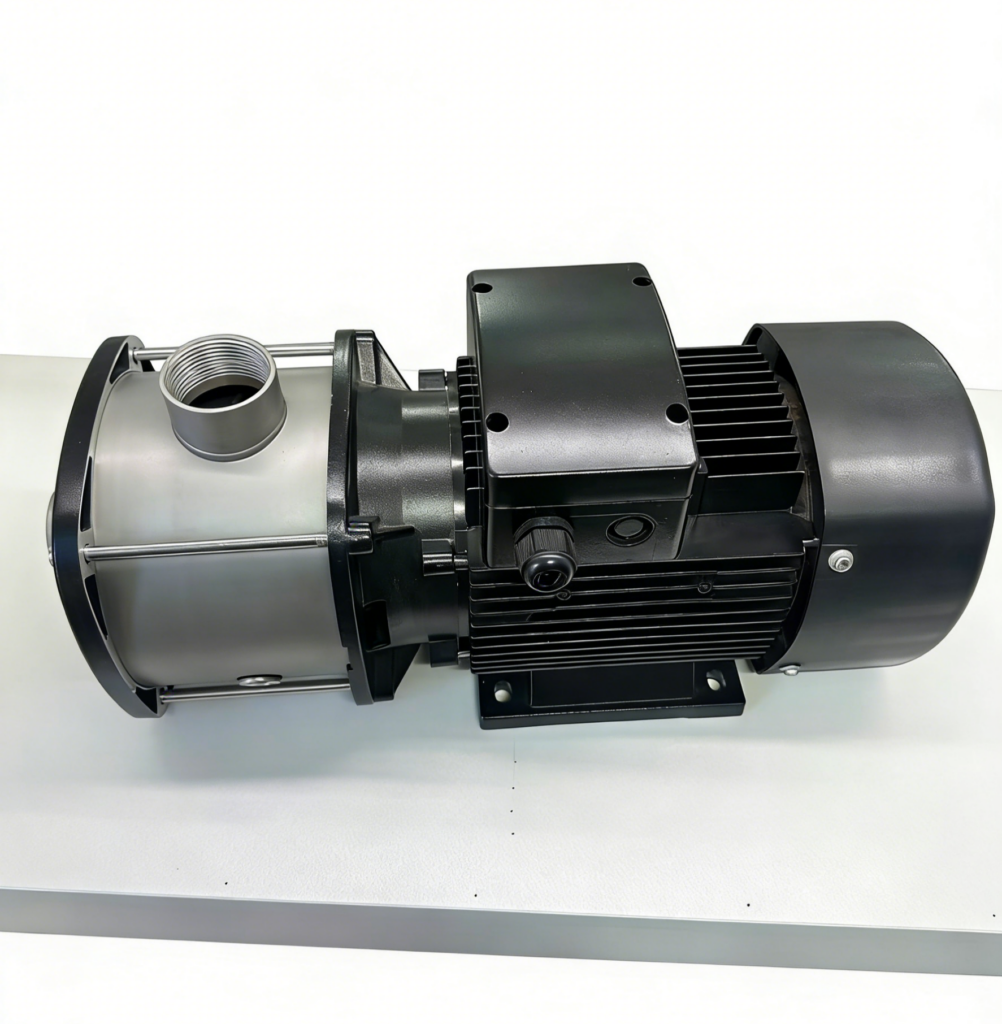

This pump is designed for a wide range of industrial and commercial applications, including air conditioning systems, water treatment, process line pressurization, heating and cooling of production lines, soft water systems, aquaculture, and fertilization/metering setups.
Ideal for conveying thin, clean, non-flammable and non-explosive liquids free of solids or fibers, it supports both normal and high-temperature operations from -20°C to +104°C, with a working pH range of 6.5–8.5. It operates reliably at ambient temperatures up to 40°C, altitudes up to 1000m, and a maximum working pressure of 1.0MPa. The motor features a high-efficiency 2-pole design, available in single-phase (220–240V, 50Hz) or three-phase (380–415V, 50Hz) options, with customization for 60Hz or alternate voltages. Built with Class F insulation, IP55 protection, and a built-in thermal protector (for single-phase), the motor supports continuous duty (S1), up to 20 starts per hour, and over 100,000 lifetime starts—powered by durable C&U high-temperature bearings.
Note: The pump must be fully primed with water before operation to ensure normal function.
Features:
- All 304 stainless steel construction-material code I
- Compact design
- Customized solutions
- High reliability
- Service-friendly
- Wide performance range
- Low noise level
- Electro-coated cast-iron parts
- Superior dry running capabilities
- Reduced footprint
- Low maintenance costs
- Single pump model for multiple applications
- Reduced downtime, High reliability
Applications:
- Washing and cleaning
- Water treatment
- Temperature control (heating/cooling)
- Chemical and pharmaceutical industries
- Building services
- Agricultural Irrigation

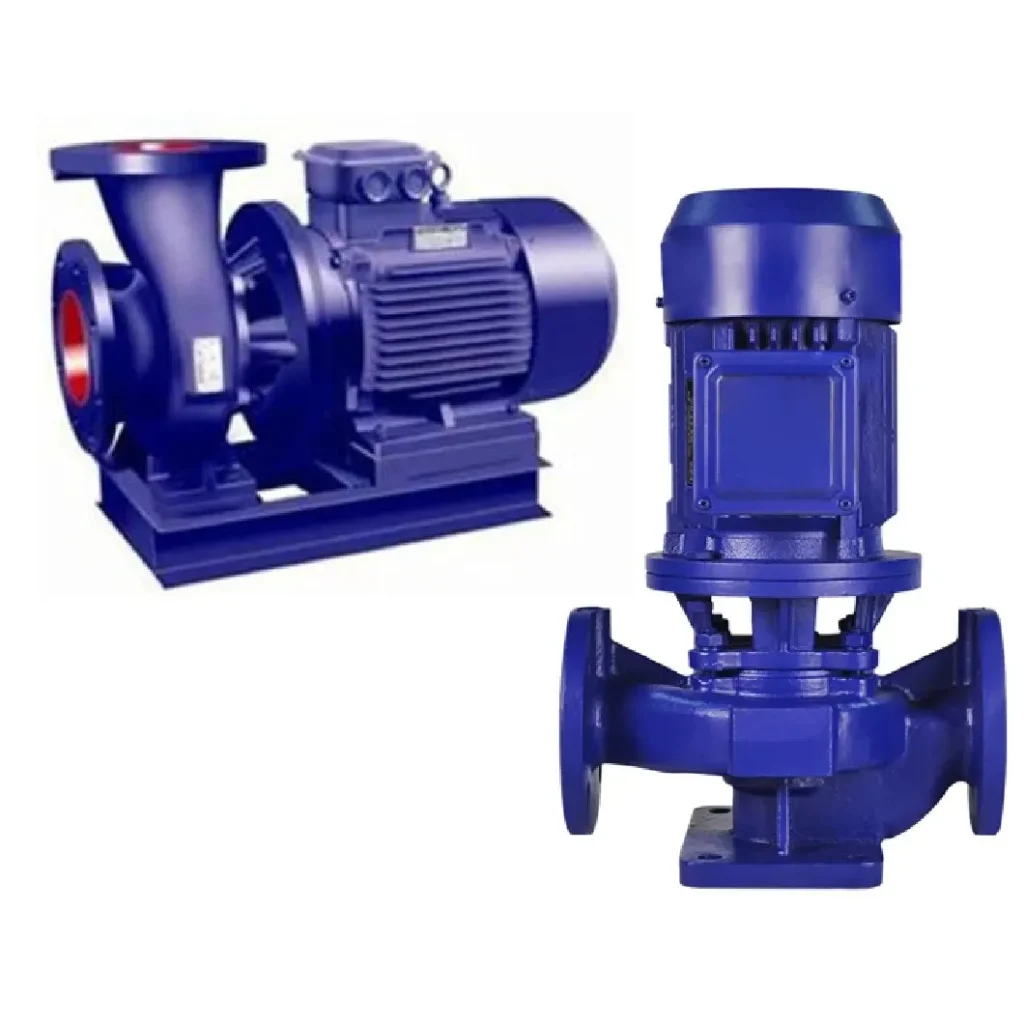

The Vertical pipeline pump is designed for booster applications, ensuring efficient transfer of both cold and hot water in various industries, including biofuel, commercial buildings, and food and beverage. Made from high-quality cast iron, this pump boasts a robust structure that can withstand heavy usage, making it a reliable choice for demanding applications such as industrial utilities and wastewater treatment. We offer OEM, ODM, and OBM customization support, allowing you to tailor the pump to your specific needs and requirements, whether it’s for small-scale family homes or large-scale industrial applications.The Vertical pipeline pump is suitable for various industries, including irrigation and agriculture, mining, pharmaceutical, and HVAC OEM, ensuring it can be used in a variety of settings.

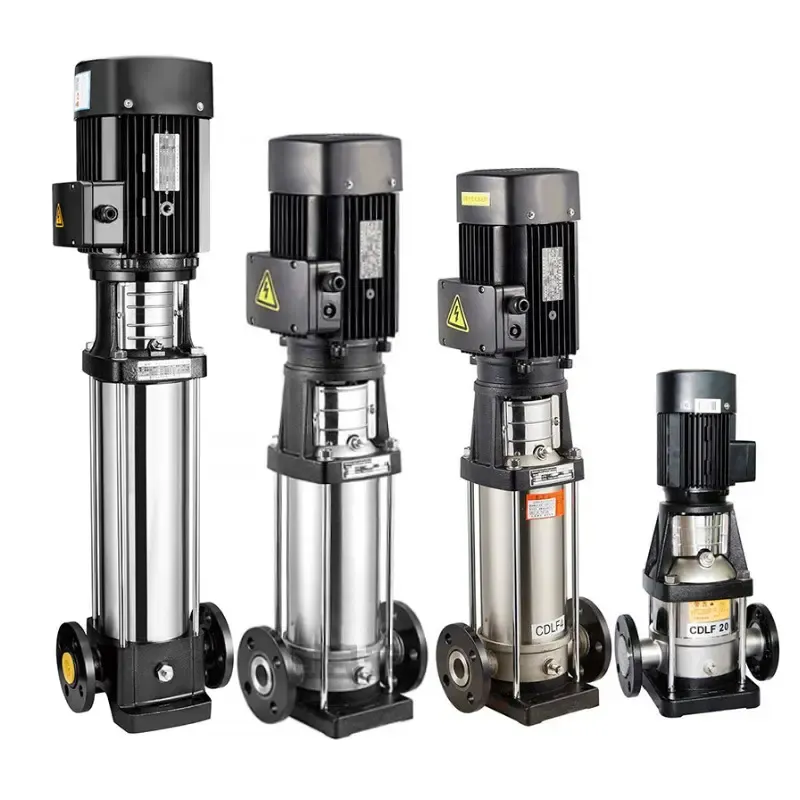

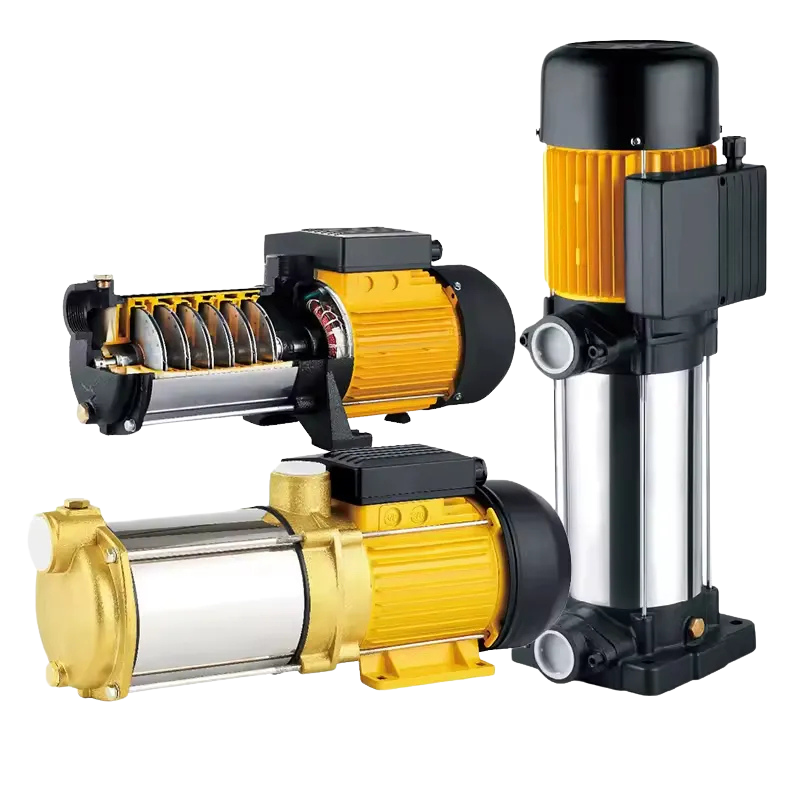

Product Features. CDL/CDLF is a non-self-priming vertical multistage centrifugal pump equipped with a standard motor. The motor shaft is directly connected with the pump shaft through a motor seat with a coupling. The pressure-resistant cylinder and the over-current parts are fixed between the motor seat and the water inlet and outlet section by tie-rod bolts, and the water inlet and outlet of the pump are on the same line at the pump bottom. The pump can be equipped with intelligent protector as required to effectively protect the pump from dry running, phase loss and overload.
Structural Installation Instructions.
1.SLG/SLGF is a multifunctional product, which can transport various media from tap water to industrial liquid, and is suitable for different temperature, flow rate and pressure ranges. SLG is suitable for non-corrosive liquid and SLGF is suitable for slightly corrosive liquid.
2.Water supply: filtration and transportation in the water plant, water supply in different zones in the water plant, pressurization in the main pipe and pressurization in high-rise buildings.
3.Industrial pressurization: process water system, cleaning system, high-pressure flushing system and fire fighting system.
4.Industrial liquid transportation: cooling and air conditioning system, boiler water supply and condensation system, machine tools, acid and alkali.
5.Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: farmland irrigation, sprinkler irrigation and drip irrigation.
Performance Range
Rated flow (m³/h): 1, 2, 3, 4, 8, 12, 16, 20, 32, 42, 65, 85, 120, 150
Temperature range: -15~120℃
Lift range: 6-300m
Working Conditions
Thin, clean, nonflammable and explosive liquid containing no solid particles or fibers.
Liquid temperature: normal temperature type -15℃~+70℃
Hot water type +70℃~+120℃
Ambient temperature: max. +40℃
Altitude: ≤1000m
Pump Accessories
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
Electrical Motors Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.

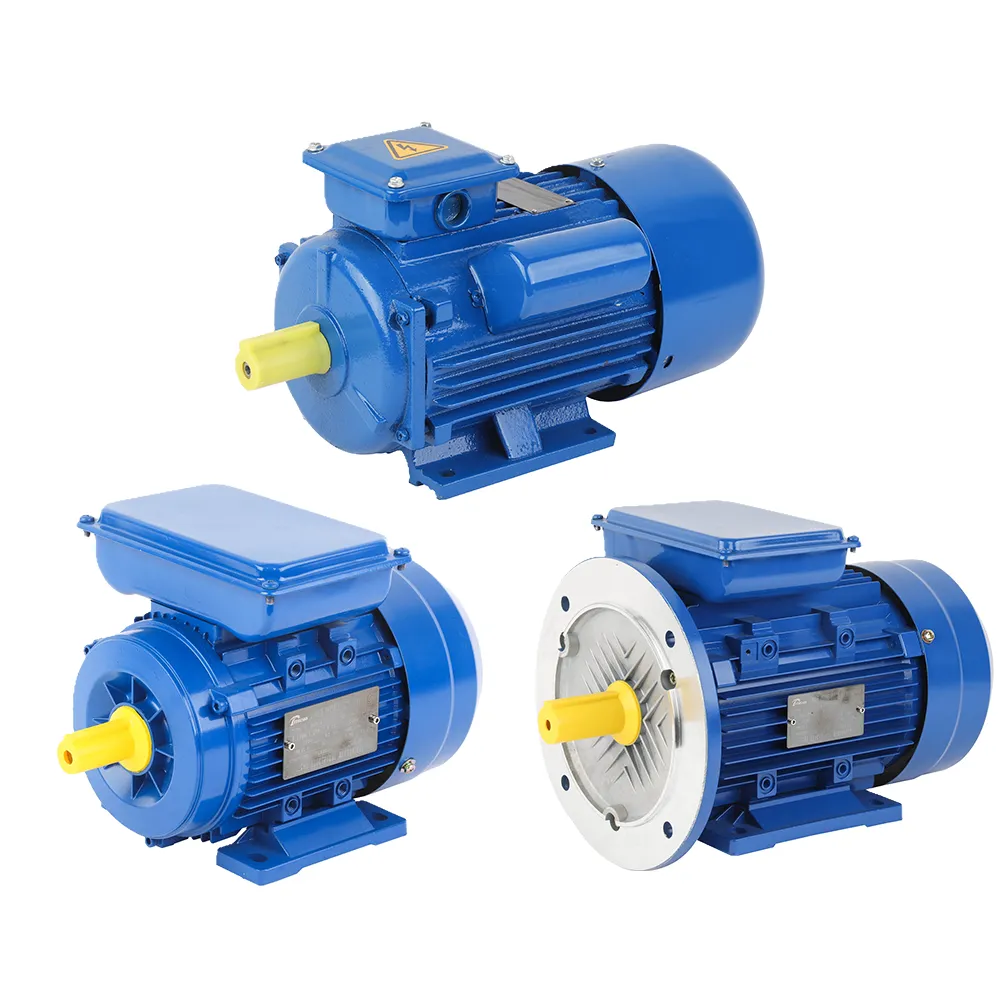

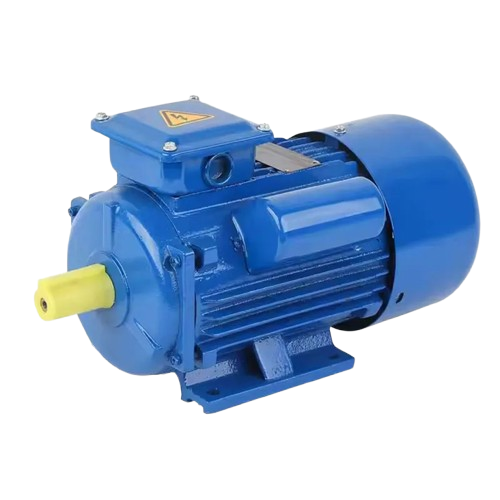

YL Series Single-Phase Capacitor Asynchronous Motors features excellent starting and runningperformance with low noise operation. These compact, lightweight motors are designed foreasy maintenance while delivering reliable power, They are dual-value capacitordesign for superior performance,energy-efficient operation,quiet running with minimalvibration,space-saving compact construction andsimple maintenance requirements. The motors are good ldeal Applications for Aircompressors, Water pumps, Hydraulic systems, Refrigeration equipment, Medical devices,Small machinery. Perfect solution for locations with only single-phase power supply availability.
Specification:
Ambient temperature:-15℃(5F)≤0≤40℃(104℉)
Altitude:not exceeding 1000m
Rated voltage: 110V-230V
Rated frequency: 50Hz、60Hz Water Resistance:lP44、IP54
Insulation class:B、F
Cooling method:1C0141
Duty: S1(continuous)

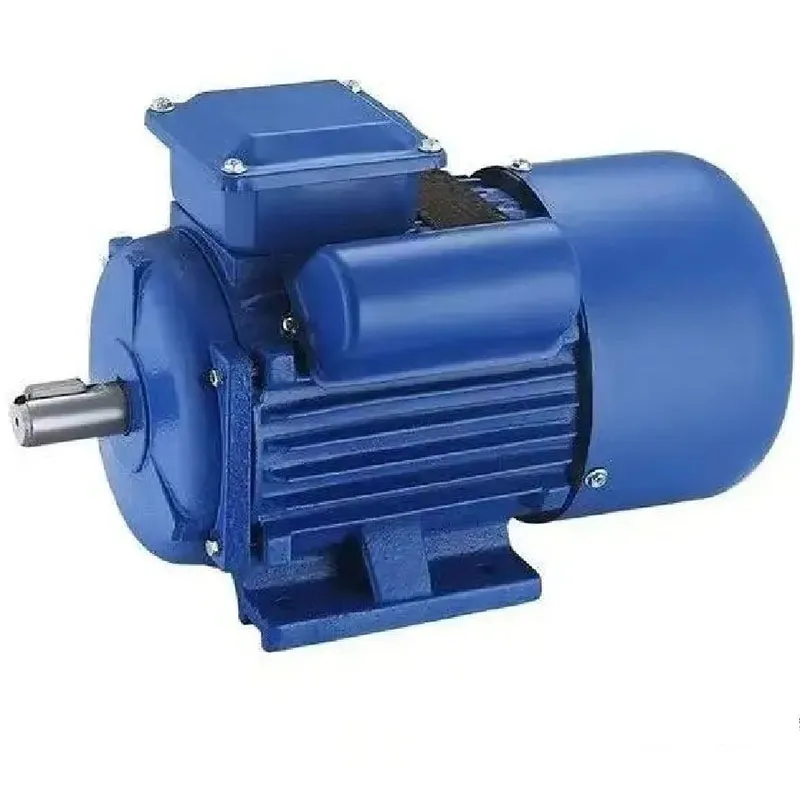

YC series motors are totally enclosed fan cooled (TEFC)heavy-duty single-phage induction motors. When rated output is 3HP or below,motors and of capacitors,and 4HP or above with capacitor start and run. YC series motors are integrated with up-to-date design,best quality materials construction, and possess the features of pleasant-looking appearance,outstanding performance,easy maintenance. The also concentrate the advantages of high staring torque,smooth turning, low temperature rise,low noise and great overload performance.YC series motors are suitable for powering small type drilling machines and water pimps,especially for family workshops where only single- phase current supply is available.
Operating Conditions：
Ambient temperature: -15℃(5℉)≤0≤40℃(104℉)
Altitude:not exceeding 1000m
Rated voltage: 110V~230V
Rated frequency: 50Hz、60Hz Water Resistance:IP44、IP54
Insulation class:B、F
Cooling method:ICO141
Duty: S1(continuous)

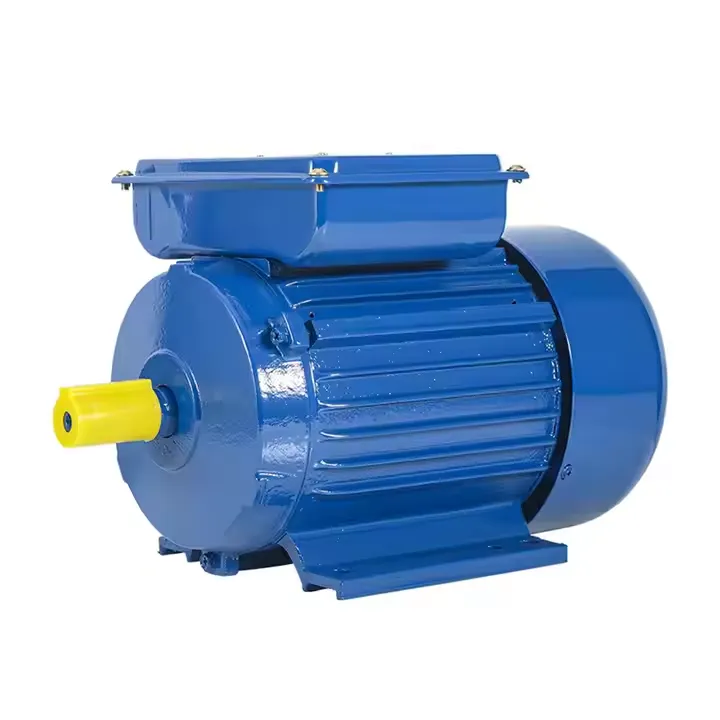

ML series single-phase capacitor asynchronous motor double value according to the national standard, the manufacture,has good starting and running performance,low noise,smal volume, lightweight, Convenient maintenance,etc. Widely used in air compressors,pumps, water machines refigeralon,medical machinery and smal machinery. Use of only a single-phase power supply situation is particularly.
- Ambient temperature: -15℃(5℉)≤0≤40℃(104℉)
- Altitude:not exceeding 1000m
- Rated voltage: 110V~230V
- Rated frequency: 50Hz、60Hz Water Resistance:IP44、IP54
- Insulation class:B、F
- Cooling method:ICO141
- Duty: S1(continuous)

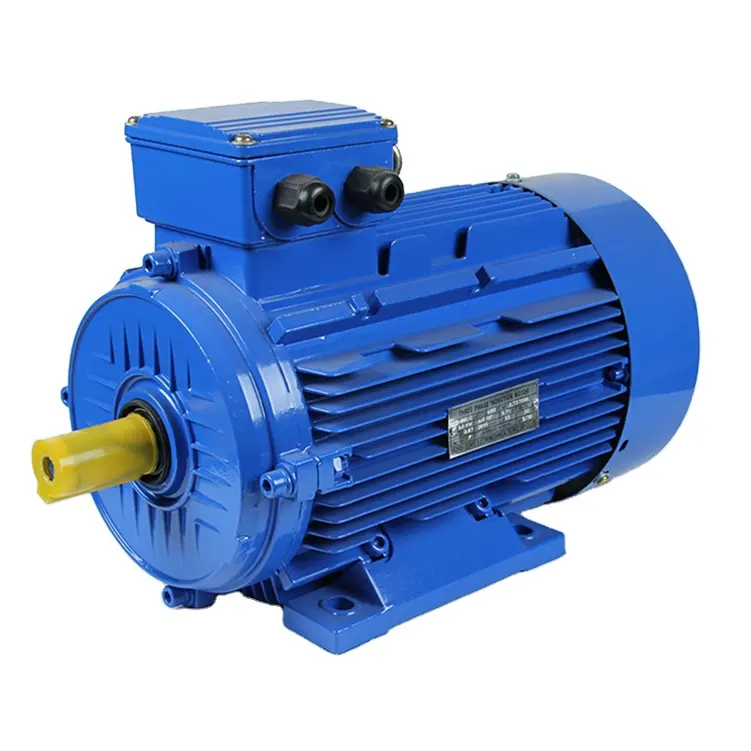

(IE3/IE2) Ye3-100L-2 (3kW/4HP) Three phase AC Electric Motor CCC CE for Pump Fans Universal Machines OEM ODM OBM High Efficiency Motor IEC Standard are a fully closed, self-fan cold mouse cage three-phase asynchronous motor manufactured with new materials, new techniques and optimized design,have high efficiency, high starting torque, low noise, more reasonable structure and cooling conditions mature. This series of motors for general purpose three-phase asynchronous motors. It can be used to drive a variety of general mechanical equipment, such as compressors, fans, pumps and other mechanical equipment, but also in petroleum, chemical, pharmaceutical, mining and other fields.
Kerosene/Diesel Forced Air Heaters Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
Axial fans Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
Air compressor Series
To innovate and provide cost-effective motor and pump solutions that enhance productivity while minimizing environmental impact. To provide Custom Solutions on Electrical motors, Priming Pump, Forced Convection Heater,Generator Set.
ZHEJIANG JINGONG PUMP TECHNOLOGY CO., LTD
Why JINGONG
Professional
Professional
Fast Delivery
Fast Delivery
Good Price
Good Price
High Quality
High Quality
ZHEJIANG JINGONG PUMP TECHNOLOGY CO., LTD

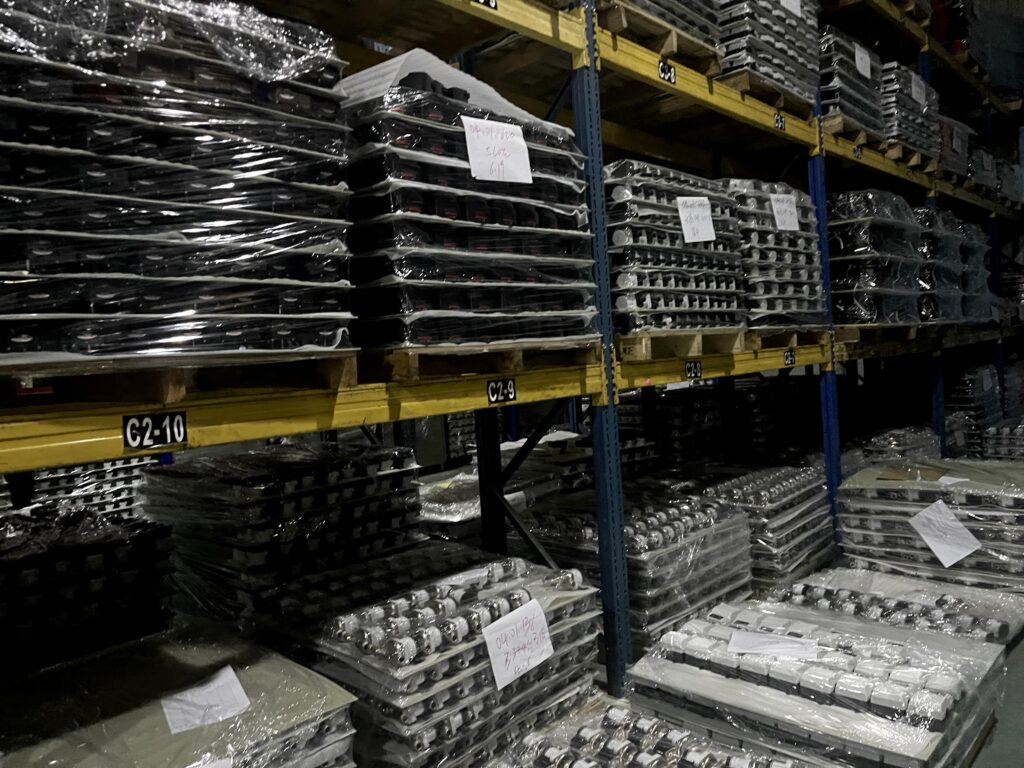

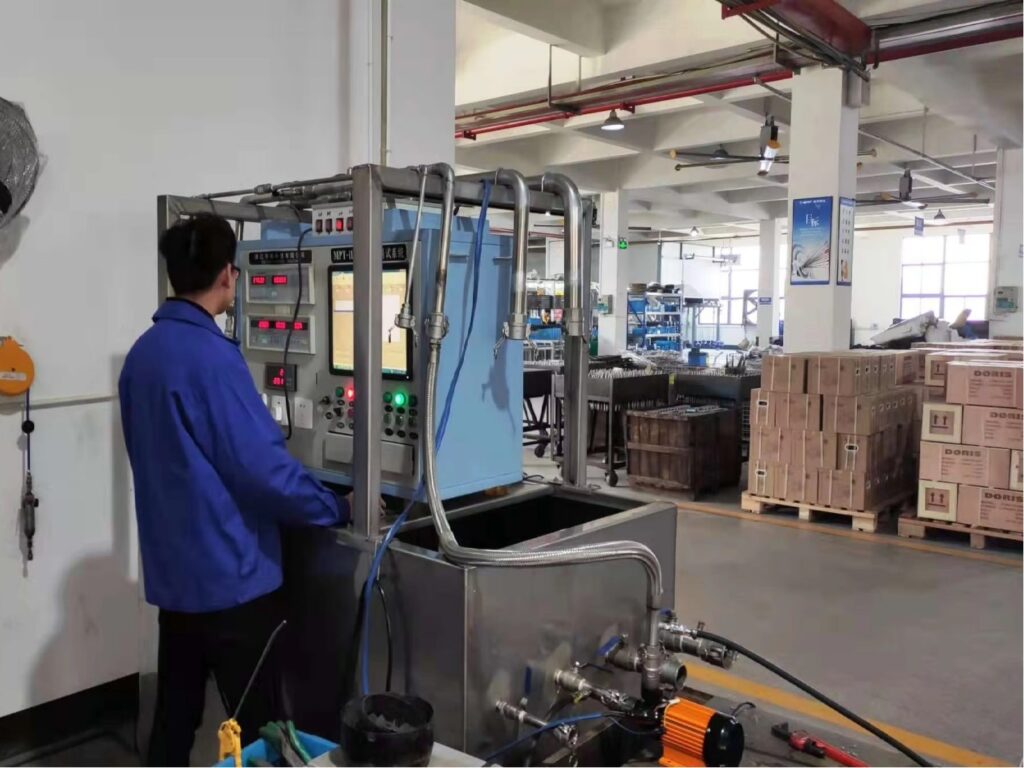

Factory Photo Gallery
ZHEJIANG JINGONG PUMP TECHNOLOGY CO., LTD
certification
ZHEJIANG JINGONG PUMP TECHNOLOGY CO., LTD
Who We Are
ZHEJIANG JINGONG PUMP TECHNOLOGY CO., LTD

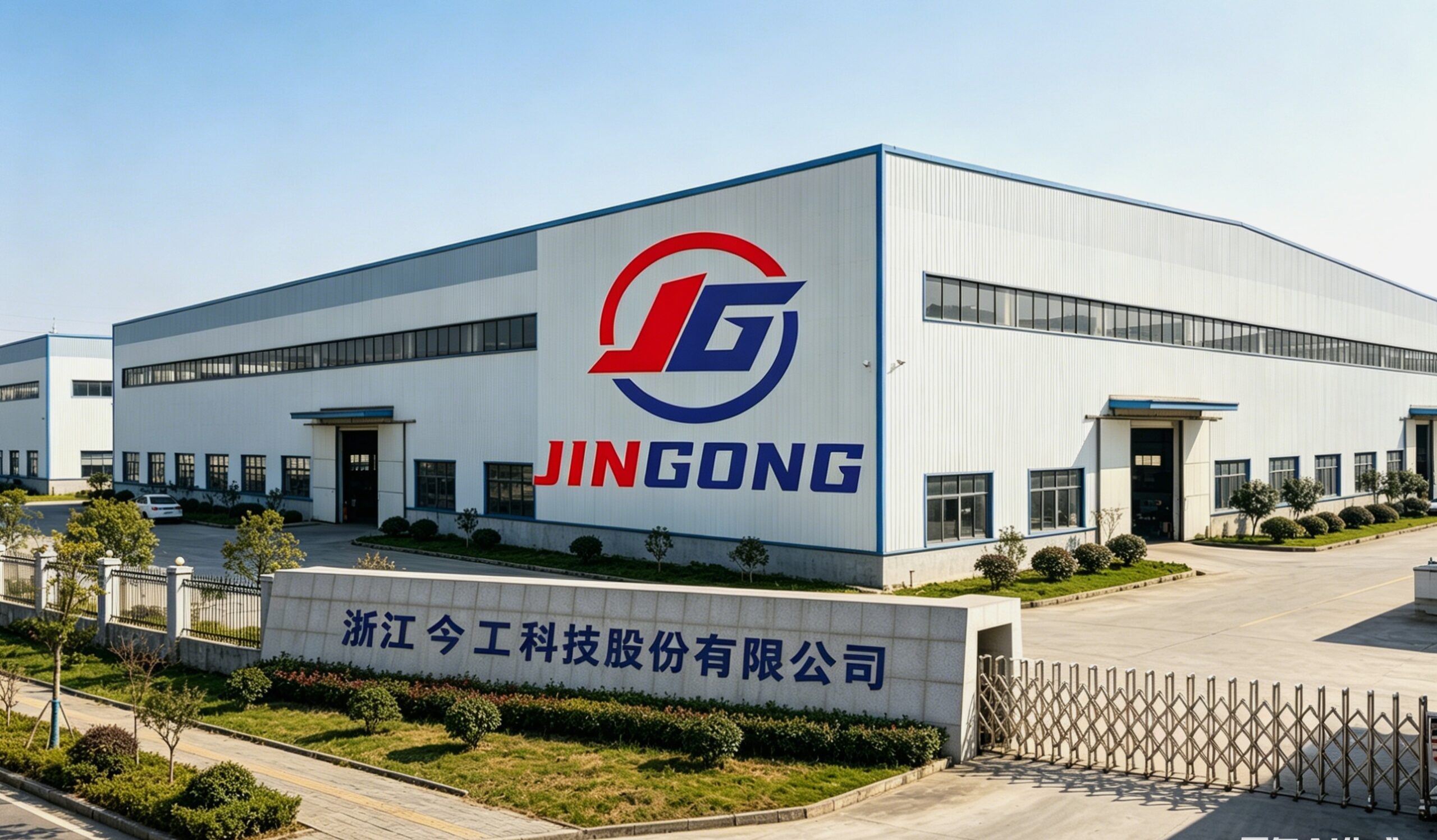

Our factory is based in Daxi, Taizhou — China’s renowned hometown of water pumps. Founded by tech-driven industry craftsmen, we focus on the R&D and manufacturing of high-quality booster pumps, submersible pumps, sewage pumps, cutting pumps, electric motors and industrial heaters. With a modern 10,000+ ㎡ production base and over 100 professional staff, we integrate rich industry experience into R&D, production and quality control to deliver stable, efficient and durable fluid solutions. Adhering to technological innovation and fine craftsmanship, our Jingong water pumps are widely recognized globally for superior durability and reliability, and we keep upgrading pump technology to supply trustworthy fluid equipment for worldwide users.
Jingong – Powering Excellence, Delivering Trust.
Contact Us
- Email:[email protected]
- Phone: +86 15888920959
- WhatsApp: +86 15888920959
- Address:317525 Qianwayu Industrial Park, Daxi, Wenling, Taizhou, Zhejiang, China
