DCP Series 1.5HP 48V/72V Solar Water Pump Cast Iron DC Solar Surface Pump for Farm Irrigation System MPPT Controller Brushless Motor High Efficiency
- The Surface Solar Water Pump for Irrigation is a high-performance, eco-friendly solution designed for efficient and sustainable agricultural watering.
- Featuring a permanent magnet DC brushless synchronous motor, it delivers 15-20% higher efficiency, significantly saving energy and reducing solar panel consumption.
- Built with durability in mind, it includes a 304 stainless steel pump shaft, brass/stainless steel outlets, and a double-bearing motor base for enhanced axial pressure resistance.
- The NSK bearing and alloy mechanical seal ensure longer lifespan and superior reliability, while the automatically wound motor coil maximizes efficiency.
Product Information
| ITEM | Voltage | Best input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel | |
| Open circuit voltage(VOC) | Power | ||||||||
| DCPM6-24-48-550 | 48V | 60V-90V | 550W | 6m³/h | 24m | 1" | 2m | <100V | ≥1.3*PUMP POWER |
| DCPM21-14-72-750 | 72V | 90V-120V | 750W | 21m³/h | 14m | 2" | 2m | <150V | ≥1.3*PUMP POWER |
| DCPM26-15-72-1100 | 72V | 90V-120V | 1100W | 26m³/h | 15m | 2" | 2m | <150V | ≥1.3*PUMP POWER |
| DCPM50-17-110-1500 | 110V | 110V-150V | 1500W | 50m³/h | 17m | 3" | 2m | <200V | ≥1.3*PUMP POWER |
| DCPM50-17-220/300-2200-AD | AC220 DC300V | 300V-400V | 2200W | 50m³/h | 17m | 3" | 2m | <450V | ≥1.3*PUMP POWER |
Key Advantages
Equipped with an intelligent controller, it offers MPPT technology for optimal solar power utilization, automatic charging (supporting battery backup), and frequency conversion for adjustable speeds. The LED display provides real-time monitoring of power, voltage, and current, while smart protections (water shortage, over-current, high/low voltage, and temperature) ensure safe operation.
Additional features like soft start, auto start/stop, and IP65 waterproofing make it a robust, low-maintenance choice for irrigation.
Ideal for large-scale farming, this solar-powered pump eliminates electricity dependency, cuts operational costs, and promotes green agriculture—perfect for sustainable water management.
- Solar driven, no grid electricity needed to save power cost
- Intelligent control panel with complete safety protection
- Portable handcart frame, easy to move outdoors
- Large caliber design for high water flow & stable pumping
- Rugged structure, durable for long-time outdoor work
- Simple installation, compatible with matched solar panels
Application Scenarios
- Farmland & orchard agricultural irrigation
- Household backyard garden lawn watering
- Livestock farm drinking water supply
- Fish pond aquaculture water circulation
- Off-grid remote rural daily water intake
- Outdoor emergency water transfer & drainage
Related products
-

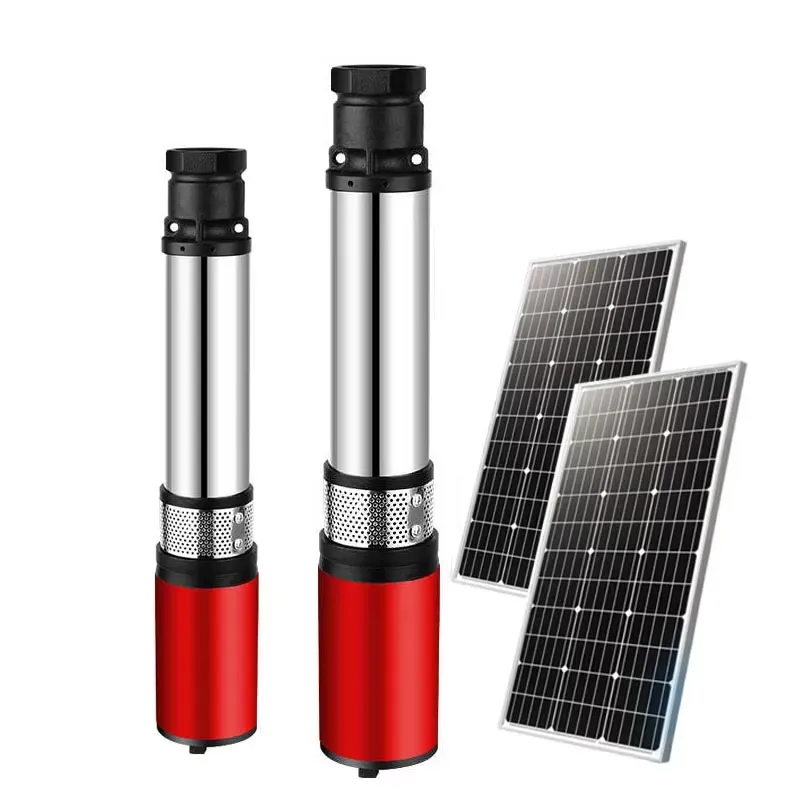

3inch 4inch DC Submersible 0.5 hp 1 hp 2 hp Deep Well Pump With External Controller Stainless Steel Solar Water Pump for Irrigation
-
