24V 48V 72V 110V Solar Pump Brushless DC Motor Stainless Steel Jet Series Pump

This solar pump is designed as DC brush motor driving pump impellers, by connecting to solar panels direcly.
The power from solar panels can drive pump.
This type pump is the most popular in the areas, where lack of electricity or strict reauirement for environmental protection.

Description

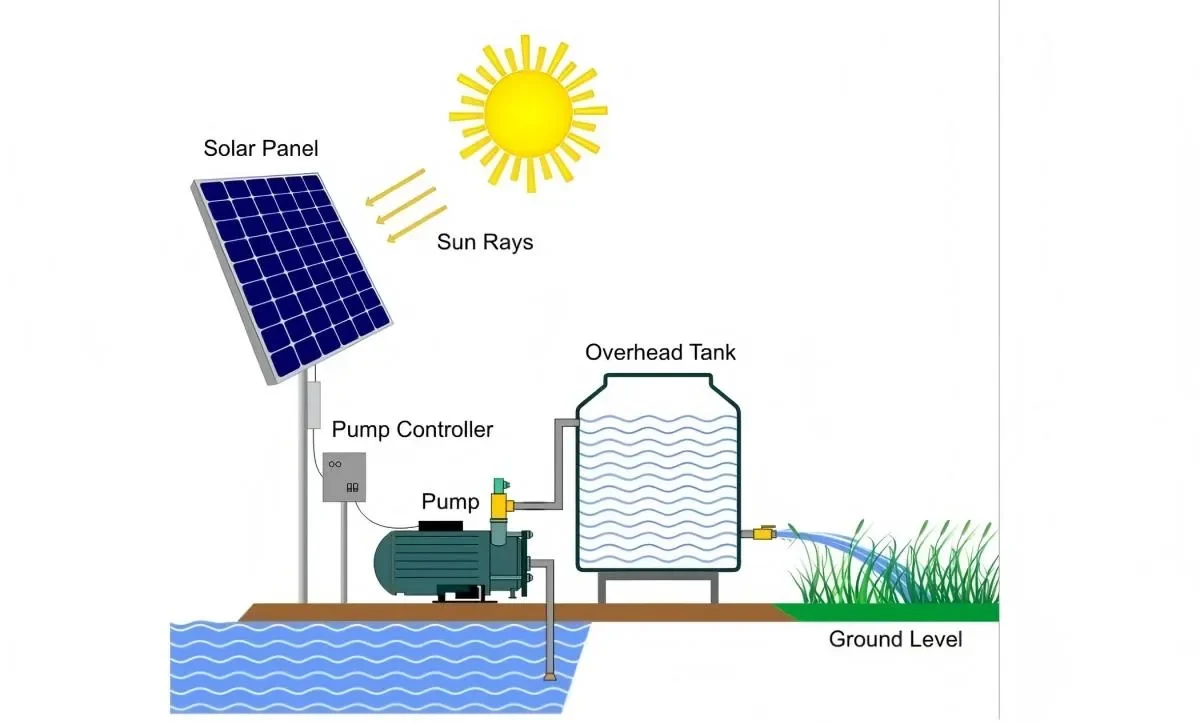

DC Solar Pump Installation

Connecting a longer cable to the pump negative terminal (black) and positive terminal (red).The cable length will be designed as actual requirement, but make sure not to connect toolong cable ,since the DC motor efficiency will be decrease during the super long cable. It isalso suggested that at least 3mm2 or 4mm2 cable to connect onto the pump. Finally, pleaseconfirm that the cable connectors is water proof and best seal.

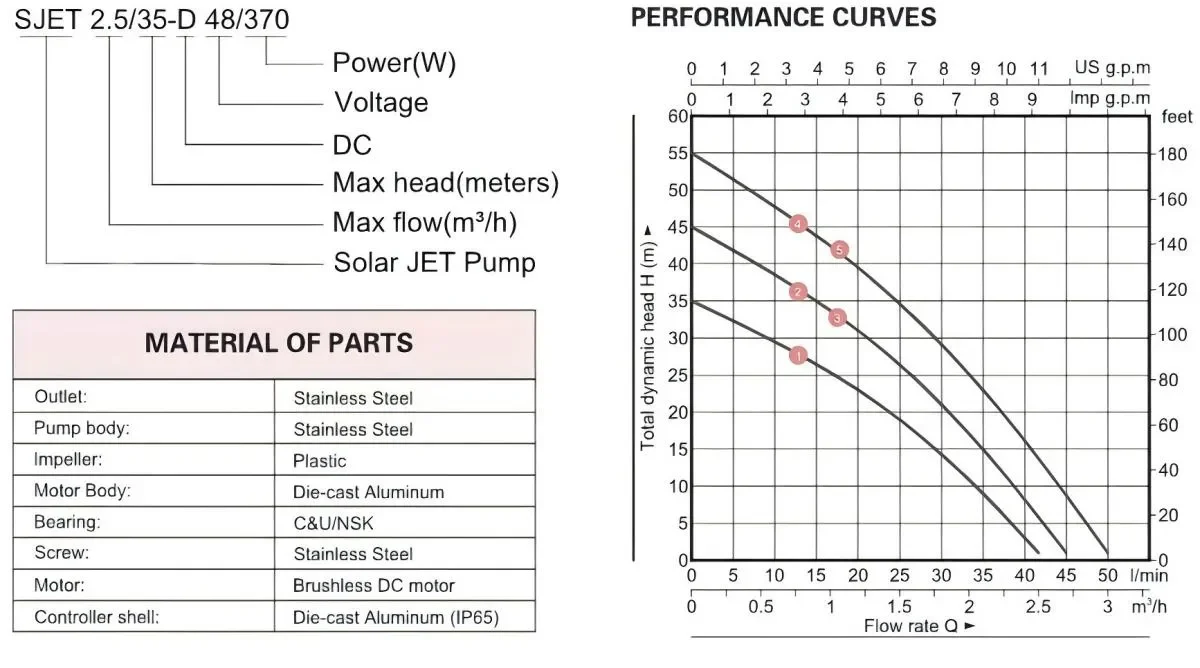

Technical Data

MODEL	Pump		Solar panel		Max.Flow	Max.Head	Outlet Dia. (inch)
MODEL	Voltage	Power	Voltage range	Power	Max.Flow	Max.Head	Outlet Dia. (inch)
SJET2.5/35-D48/370	48V	370W	42V-100V	500W-600W	2.5m³/h	35m	1×1
SJET2.7/45-D48/550	48V	550W	42V-100V	720W-900W	2.7m³/h	45m	1×1
SJET2.7/45-D72/550	72V	550W	63V-150V	720W-900W	2.7m³/h	45m	1×1
SJET3/55-D48/750	48V	750W	42V-100V	1000W-1250W	3m³/h	55m	1×1
SJET3/55-D72/750	72V	750W	63V-150V	1000W-1250W	3m³/h	55m	1×1
