By Jingong Pump Engineering Team | | 15+ years manufacturing & exporting gasoline, diesel, centrifugal, submersible, booster & solar pumps from Zhejiang, China to 40+ countries.

Gasoline Engine Water Pump Shipping is one of the most frequently debated topics in our export office. Every month, at least 20–30 overseas buyers (distributors, contractors, agricultural co-ops, and disaster-relief procurement officers) ask us the same question: “Should I ship my gasoline engine water pump order by sea or by air?”

The answer is never a simple “sea is cheaper, air is faster.” As a manufacturer who has shipped 10,000+ gasoline and diesel engine pump units globally via both FCL, LCL, and air cargo, we’ve seen orders saved by choosing air, and margins destroyed by choosing air unnecessarily. This guide breaks down cost models, transit times, HS code pitfalls, packaging risks, and real case studies—so you can decide based on data, not guesswork.

1. Why Gasoline Engine Water Pump Shipping Deserves a Dedicated Strategy

1.1 Industry Context: Not Just “Another Piece of Machinery”

A gasoline engine water pump isn’t a smartphone. It’s a 10–500 kg mid-heavy assembly combining:

a 4-stroke or 2-stroke gasoline engine (often 5.5 HP – 13 HP),
a cast-iron/aluminum pump body with mechanical seal,
steel frame & anti-vibration mounts,
and in many markets, a fuel tank containing residual oil traces even after factory drain.

That last point matters: Gasoline Engine Water Pump Shipping sits at the intersection of “general machinery” and “dangerous goods nuance.” While the pump itself is non-DG, engines that haven’t been fully degreased can trigger DG-like inspections. This alone changes your freight quote.

1.2 Who This Guide Is For

Pump distributors balancing margin vs. lead time
Procurement officers for irrigation / construction / emergency drainage projects
E-commerce sellers on Amazon / Mercado Libre / Jumia stocking small-batch gasoline pumps
New exporters at Jingong who ask us: “Why can’t we just air all sample orders?”

1.3 The Core Verdict (Read This First)

Sea freight = bulk orders (≥10 units / ≥100 kg), delivery window ≥30 days, cost-sensitive.
Air freight = urgent replenishment (≤15 days), samples (1–2 units), high-value customized SKUs, landlocked destinations where ocean + long trucking outweighs air.

Everything else—cost breakdown, timing, HS codes, packaging—is detail around this rule.

2. Product Characteristics That Directly Impact Shipping

2.1 Weight, Volume & Packaging of a Typical Gasoline Engine Water Pump

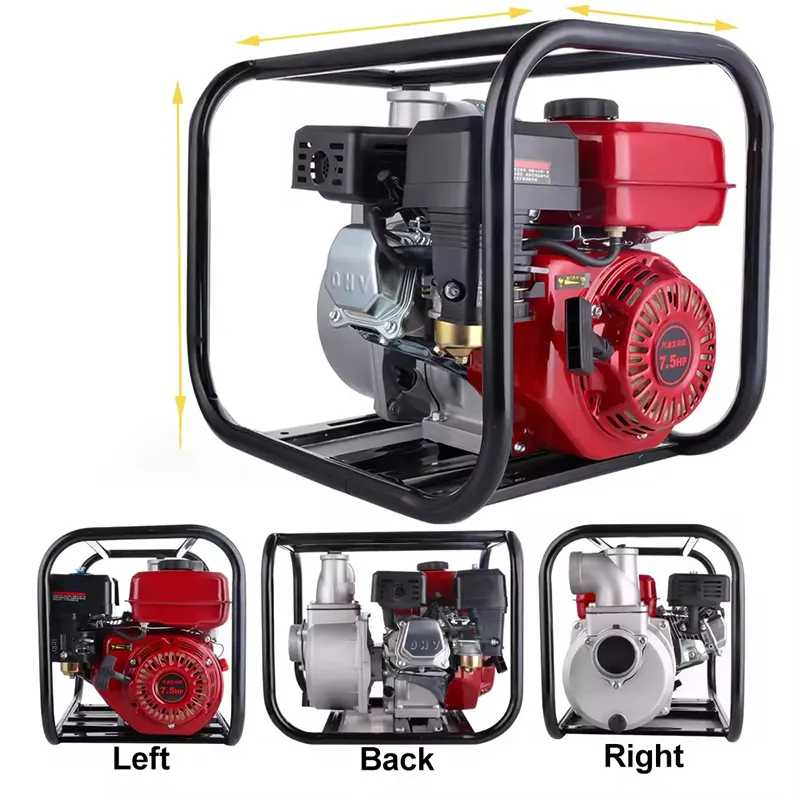

At Jingong, our best-selling 2″ gasoline engine water pump (170F / GX160-class engine, 5.5 HP) specs:

Net weight: 23–28 kg / unit
Gross weight (carton + steel frame): 30–34 kg
Carton dimension: 52×42×48 cm (~0.105 CBM)
20 pcs / pallet, 10 pallets / 20′ FCL ≈ 200 units

Larger 4″ / 6″ diesel-engine pumps push 80–120 kg/unit and require wooden crate reinforcement (ISPM-15 stamped, mandatory for US/EU/AU entry).

Gasoline Engine Water Pump Shipping-relevant pain points from the product side:

Mechanical seal fragility: vertical stacking beyond 3 layers cracks ceramic seals → leak on first start-up.
Engine oil residue: even “drained” units smell of gasoline → some airlines ask for DG declaration.
Vibration testing: ocean swells + poor lashing = loosened bolt torque on outlet flange.

2.2 HS Code: The One Thing Most Buyers Get Wrong

For Gasoline Engine Water Pump Shipping, HS classification is a common friction point:

Pump body alone → 8413.70 (centrifugal pump) or 8413.81 (other pumps) under HS 8413 “Liquid pumps” [2](@ref)
Engine portion → 8407** (spark-ignition reciprocating piston engine) if declared separately
Coolant pump FOR the engine → 8413.30 (but that’s NOT our product; ours is the engine-driven water pump, not the engine’s own coolant pump) [5](@ref)

💡 Jingong tip: We always declare the complete unit under 8413.70 / 8413.81 with engine attached, NOT split. Split declaration triggers dual customs entry, higher brokerage, and sometimes 8407 import duty spikes in markets like India/Brazil. Ask your broker before copying a random Alibaba listing’s HS code.

2.3 Comparison: Gasoline Pumps vs Other Jingong Lines (Shipping Angle)

Since Gasoline Engine Water Pump Shipping we’re a full-line factory (booster pumps, submersible pumps, centrifugal land pumps, solar pumps, gasoline/diesel engine pumps), it’s worth noting:

Solar pump & submersible pump orders → no engine oil issue → air freight cleaner, no DG hassle
Gasoline/diesel engine pumps → engine oil trace → stricter packing certs, slightly higher inspection rate
Booster / centrifugal land pumps (electric motor driven) → middle ground, but motors ＞750W may need CCC/CE extended docs

3. Cost & Time: The Core Comparison

3.1 Sea Freight Cost Breakdown (Gasoline Engine Water Pump Shipping)

Base components:

Ocean freight: FOB Ningbo / Shanghai quoted per 20′ / 40′ FCL, or per CBM for LCL
Local charges at origin: DOC, THC, sealing, customs filing (~$150–250 / shipment)
Insurance: 0.3%–0.5% of CI value (we recommend 110% CI coverage)
Packaging upgrade: standard carton vs. plywood crate + IPPC stamp (+$3–8/unit depending on qty)
Destination charges: DTHC, ISF (US only), customs brokerage, VAT/duty
Risk costs: demurrage (free time typically 5–7 days at destination; $50–150/day after)

2026 market reference (Shanghai Export Containerized Freight Index, Jun 2026):

US West Coast: $4,149 / FEU [9](@ref)
US East Coast: $5,333 / FEU [9](@ref)
Europe Base Port (Rotterdam/Hamburg): $3,064 / TEU [15](@ref)
Mediterranean Base: $4,172 / TEU [15](@ref)

📊 Example: 200 pcs × 2″ gasoline pumps (200 units / 20′ FCL, Ningbo → Los Angeles, July 2026)

Ocean freight (shared in FEU context, 20′ approx 60–70% of FEU): ~$2,900
Origin local: $220
Insurance (CI $36,000 × 0.4%): $144
Destination DTHC + ISF + broker: ~$450
Total landed freight cost: ~$3,714 → $18.57 / unit

3.2 Air Freight Cost Breakdown

Air freight for Gasoline Engine Water Pump Shipping is charged on volumetric weight vs. gross weight, whichever is higher.

Volumetric factor (most carriers): 1 CBM = 167 kg chargeable.

Components:

Air freight rate: per kg (2026 rates: China→Europe ~¥35/kg, China→US ~¥32/kg) [1](@ref)
Fuel surcharge: indexed to IATA, fluctuates monthly (±15% seasonal swing)
Security & handling: $0.15–0.3/kg + terminal fees
Customs clearance at origin: ~$50–80 / shipment
Destination clearance + delivery: varies ($120–400 depending on destination country complexity)

📊 Same 200 pcs by air? No way—that’s 6,000+ kg, air would be $192,000+. But a sample order 2 pcs (68 kg gross):

Air freight: 68 kg × ¥32 ≈ ¥2,176 (~$300)
Handling + clearance: ~$120
Total: ~$420 → $210 / unit for a sample batch

👉 Rule of thumb: Sea is ~5–10× cheaper than air for the same gasoline pump shipment when volume ≥100 kg. Below 50 kg, the gap narrows because air has lower fixed overhead, but you still pay 3–6× per kg vs. sea.

3.3 Transit Time Comparison

Route	Sea (Port-to-Port + Clearance)	Air (Airport-to-Airport + Clearance)
China → US West (LA/LB)	18–25 days ocean + 5–7 d clearance = 23–32 days	2–4 days flight + 2–3 d clearance = 4–7 days
China → US East (NY/SAV)	30–38 days ocean + 5–7 d = 35–45 days	3–5 days flight + 2–3 d = 5–8 days
China → Europe Base (NL/DE)	28–35 days ocean + 4–6 d = 32–41 days	2–4 days flight + 2–3 d = 4–7 days
China → Southeast Asia	5–9 days ocean + 2–4 d = 7–13 days	1 day flight + 1–2 d = 2–3 days

⚠️ Delays to factor in for Gasoline Engine Water Pump Shipping:

Sea: Red Sea rerouting (adds 10–14 days to Europe via Cape of Good Hope), US West port congestion, hurricane season (Jul–Oct Atlantic)
Air: peak e-commerce seasons (Nov–Jan pre-CNY), Middle East airspace closures (affecting EU routes via DXB) [1](@ref)

3.4 Beyond Cost & Time: 3 Extra Dimensions

(a) Customs complexity
Sea (FCL): container scan + possible physical inspection if HS 8413 flagged → 1–3 extra days.
Air: piece-level inspection, faster release, but stricter on “engine with fuel trace” DG checks.

(b) Risk profile
Sea: higher breakage (stacking, moisture, container condensation), loss risk lower but damage risk higher.
Air: lower vibration, but “lost in transit” claims trickier with some carriers.

(c) Flexibility
Air wins for multi-drop shipments (e.g. 3 units to DE, 2 to FR, 1 to NL—split air bills easier). Gasoline Engine Water Pump Shipping Sea almost always single destination per container.

4. Scenario-Based Decision Guide

4.1 When Sea Freight Is the Default for Gasoline Engine Water Pump Shipping

Order ≥10 units (≥100 kg total)
Delivery window ≥30 days
Destination near a major port (LA, Rotterdam, Santos, Sydney, Bangkok)
Cost-sensitive distributor margin (sea freight often 2–4% of COGS; air can hit 15–25%)
Routine replenishment, not emergency

Jingong practice: For EU distributors ordering 300+ units/quarter, we ship 20′ FCL every 6 weeks on a fixed sailing schedule (COSCO / ONE / MSC). Landed cost predictability > speed.

4.2 When Air Freight Makes Sense

Sample orders (1–2 units) for client demo/test
Emergency replenishment (disaster relief, irrigation season spike, construction site pump failure)
High-value customized SKU (e.g. OEM-branded gasoline pump with special impeller, low volume, high margin)
Landlocked destination where ocean + 1,000 km trucking > air + 50 km trucking (e.g. Munich, Denver, Nairobi)
Delivery ≤15 days hard deadline

4.3 Edge Cases (Where Jingong’s Experience Saves You)

Case A: Medium batch (8–15 units), 20-day delivery
→ “Express sea” option: Ningbo → LA via Matson (12–15 days port-to-port), premium over standard COSCO but still ⅓ of air cost.

Case B: EU destination + strict QR code / CE lot-trace
→ Air clearance at BRU/FRA often 4–6 hours vs. 2–3 days sea container hold. If your buyer’s warehouse needs the pump “this week,” air wins despite cost.

Case C: Monsoon-season emergency (South/Southeast Asia, July–Sept)
→ Flood drainage gasoline pumps → air to Bangkok/Dhaka/Manila, even 20-unit batches, because 30-day sea = useless when fields are already flooded.

5. Practical Optimization Tips (Cost, Time, Risk)

5.1 Cost Optimization

Sea: Book 3–4 weeks out; sign annual contract with forwarder (Jingong gets $150–300/FEU off spot via annual volume). Optimize carton size to hit 20′ FCL max (we redesigned our 2″ pump carton from 0.115 → 0.105 CBM = +16 units / 20′ FCL).
Air: Consolidate with other Jingong product lines (e.g. send 2 gasoline pumps + 6 submersible pumps in one AWB to same consignee—spreads handling cost). Avoid pre-CNY / Nov peaks.
Both: Negotiate FOB rather than EXW if your forwarder has better ocean contract than buyer’s; alternatively CIF to port-only buyers who don’t have bonded warehouse.

5.2 Time Optimization

Pre-clearance: Send commercial invoice + packing list + HS 8413 declaration draft to buyer’s broker before sails.
Sea: Choose direct service (Ningbo → LA direct, not Ningbo → Busan → LA transship). Transship adds 5–9 days and 1 extra handling = higher damage odds for pump seals.
Air: Morning departure PVG/CAN > evening red-eye for EU (better trucking connection on arrival day).

5.3 Risk Control for Gasoline Engine Water Pump Shipping

Packaging: IPPC plywood crate for orders ≥5 units going to US/EU/AU. Inner: EPE foam + carton + “THIS SIDE UP” + “FRAGILE – MECHANICAL SEAL” labels. Engine drain plug must be torqued + zip-tied, then capped — we’ve had 2 cases where loose plug + ocean swell = oil stain on 40 cartons = rejection.
Insurance: All-risk (not just FPA). Jingong default: 110% CI, Institute Cargo Clauses (A).
Contract: FOB wording should specify “buyer arranges main carriage, seller arranges export clearance + lashing.” CIF wording: “seller arranges until destination port, risk transfers on board.” Know the difference—we’ve seen $800 demurrage disputes from lazy Incoterms.

6. Real Case Studies from Jingong‘s Shipping Log (2024–2026)

Case 1: Bulk Sea — 480 Gasoline Pumps Ningbo → New Jersey (Distribution Replenishment)

Product: 2″ gasoline engine water pump, 170F engine, 240 pcs + 240 pcs 3″ diesel (mixed FCL)
Qty / weight: 480 units, ~13,200 kg, 2×20′ FCL
Delivery window: 45 days
Freight choice: Sea FCL, COSCO, Ningbo → NY/NJ
Total freight cost: $6,180 (ocean $5,200 + local $480 + ins $220 + dest $280)
Per-unit freight: $12.88
Result: On-time, 1 carton crushed (top layer, forklift error at NJ terminal, insurance claimed $86). Client repeated order Q2 2026.

Case 2: Urgent Air — 4 Units Ningbo → Munich (Emergency Irrigation, Bavaria Drought Alert)

Product: 3″ high-head gasoline pump, OEM branding for DE distributor
Qty / weight: 4 units, 135 kg gross
Delivery window: 6 days (state-level procurement, tender condition)
Freight choice: Air PVG → MUC, CA/ LH joint
Total freight cost: $523 (air $398 + handling $78 + dest clearance €65~$70)
Per-unit freight: $130.75
Result: Arrived Day 5, cleared Day 6, installed Day 7. Air premium justified by tender penalty clause (€200/day delay).

Case 3: Medium Batch + Tight Window — 12 Units Ningbo → Sydney (Mixed Decision)

Product: 4″ diesel engine pump (construction dewatering)
Qty / weight: 12 units, ~960 kg
Delivery window: 22 days
Options weighed: Sea LCL (18 days ocean + 5 d clearance = 23 d, $1,080) vs. Air ($2,900).
Decision: Sea LCL via “express Sydney” service (direct, no transship Singapore) — 16 d ocean + 3 d clearance = 19 d. Saved $1,820 vs. air, met deadline by 3-day buffer.
Lesson: “Express sea” tiers exist — ask your forwarder for “Sydney direct / Melbourne direct” surcharge options before defaulting to air.

7. Industry Trends (2025–2026) That Affect Your Next Shipment

7.1 Sea Freight: Price Volatility + Route Rerouting

SCFI has seen multi-phase jumps in H1 2026 — US West FEU up 87% YTD (Jun 2026 vs. Dec 2025) [9](@ref). Red Sea rerouting remains the “new normal,” adding 10–14 days to Europe. For Gasoline Engine Water Pump Shipping, this means:

Quote validity shortened from 30 days → 7–14 days
Europe-bound orders: add 12–16 days buffer to your lead-time calc
Forwarder “all-in” rates preferred over bare ocean + separate local (too many surcharge variables)

7.2 Air Freight: Fuel Surcharge & Middle East Airspace

BAI index Mar 2026: 2065 points, up 2.6% MoM [1](@ref). China→Europe air ~¥35/kg, China→US ~¥32/kg. If Middle East escalates further, expect +15–25% air spikes within 2 weeks. For emergency gasoline pump replenishments, book 10–14 days ahead even for air — express cargo space fills first.

7.3 CBAM (EU Carbon Border) — Indirect Impact on Pump Exports

EU CBAM formally implements Jan 2026 for steel/aluminum, but Dec 2025 draft expands to 180 downstream products (machinery, hardware, construction equipment) effective 2028 [11,14](@ref). Gasoline engine water pumps contain steel frame + aluminum pump housing + possibly cast-iron impeller — CBAM-relevant steel/al ratio embedded in product.

Jingong action: We’ve started tracking per-unit embedded steel/kg CO₂ for EU-bound SKUs, so 2027 quotes can include CBAM certificate cost pass-through if needed. Recommendation: if you’re an EU distributor importing 500+ pumps/year, ask your supplier for mill test certs + steel source declaration now — don’t wait for 2028.

7.4 Packaging Lightweight Trend

To offset freight cost surges, Jingong R&D reduced 2″ pump carton CBM by 8.7% (2025 redesign) and switched 30% of EU-bound crates from solid wood to engineered plywood (still IPPC). For a 20′ FCL, that’s +14 units capacity = ~$210 freight saving/unit on a 200-unit order.

8. FAQ — Gasoline Engine Water Pump Shipping

Q1: Does a gasoline engine water pump count as Dangerous Goods for air freight?

A: The pump itself is not DG. However, the attached gasoline engine may retain fuel vapor/oil residue. Most airlines require a “Non-DG Declaration” plus evidence the engine was drained & purged. Jingong provides a factory drain certificate with every export unit — without it, some carriers reject the AWB.

Q2: Small batch (2–3 units, 60–90 kg) — sea LCL or air?

A: If delivery ≥20 days → LCL sea (cheaper, ~$2.5–4/kg to US/EU). If ≤15 days → air. LCL minimums are usually 1 CBM (~$80–140 to US West) — below 0.5 CBM you’re paying “minimum charge” anyway, so air sometimes surprisingly close on price for 2–3 units.

Q3: Which HS code should I declare for a complete gasoline engine-driven water pump?

A: Declare the complete unit under 8413.70 (centrifugal) or 8413.81 (other), engine attached, NOT split into 8413 + 8407. Split declaration increases duty in some markets (e.g. India BG rate on 8407 higher than 8413). Confirm with your broker — we’ve seen $1,200+ duty overpayment on a 50-unit order from wrong split.

Q4: How to minimize packaging breakage for sea shipment?

A: Three rules Jingong enforces: (1) carton max stack 3 layers on pallet, (2) EPE foam insert around mechanical seal + outlet flange, (3) IPPC crate for orders ≥5 units to US/EU/AU. “This Side Up” + “Fragile – Mechanical Seal” bilingual (EN + local language) cuts mishandling claims ~60% in our 2024 data.

Q5: Can I mix gasoline pumps with other Jingong products (submersible, solar, booster) in one container?

A: Yes, and we encourage it — better FCL utilization. Solar pump cartons are lighter/larger CBM, gasoline pumps are heavier/smaller CBM — they complement weight-distribution-wise. One 20′ FCL can hold ~120 gasoline pumps + 40 submersible units mixed. Just ensure HMRC/US CBP lets you declare multiple HS codes in one B/L (they do — up to 5 HS lines typical).

Q6: What Incoterm should I use for my first gasoline pump order?

A: New buyers: start with FOB Ningbo or FOB Shanghai — you control the ocean/air contract, Jingong handles export clearance + lashing. Once you have a forwarder relationship, move to EXW (cheapest ex-factory) or CIF/CPT if your buyer prefers “one invoice covers all.” Avoid DDP unless you have a bonded logistics partner at destination — pump + engine combo makes DDP tax calc messy in EU (VAT + possibly CE conformity cert upload).

9. Summary & Action Plan

Gasoline Engine Water Pump Shipping isn’t a one-size-fits-all decision. Our 14 years at Jingong shipping to 40+ countries boil down to three rules:

>100 kg / >20 days → sea (FCL if ≥10 units, LCL if 2–9 units)
<50 kg / <15 days → air (samples, emergencies, landlocked)
Always confirm HS 8413 single-entry, engine drained cert, IPPC crate for sea, Non-DG decl for air.

2026’s freight market is volatile — SCFI jumping 30%+ on US West in a single week [9](@ref), air fuel surcharges swinging with Middle East airspace [1](@ref). Build 10–15 day buffers into your PO lead time, lock forwarder rates 3–4 weeks out, and don’t let “air feels faster” override margin math on bulk orders.

10. Appendix (Quick Reference for Ops Teams)

10.1 Forwarder Selection Checklist (Pump-Specific)

✅ Has handled HS 8413 / 8407 combos before (ask for 1 reference shipment)
✅ Offers both NVOCC (sea) and IATA-direct (air) — one PO may need both
✅ Provides insured door pickup from Ningbo/Yiwu/Shanghai (Jingong ships from all three)
✅ Can issue SWB (Sea Waybill) on request — faster release than B/L original for trusted buyers
✅ Quotes “all-in” not “ocean only + surcharge TBD”

10.2 Export Docs Checklist (Gasoline Engine Water Pump Shipping)

Commercial Invoice (CI) — incoterm + HS code + unit price breakdown (pump / engine / accessories)
Packing List — per-carton dims, gross/net, pallet count
Bill of Lading (or SWB) / Air Waybill
Certificate of Origin (COO) — sometimes needed for preferential duty (ASEAN-China, RCEP)
CE / EPA certificate copy (for US: EPA Phase III for small spark-ignition engines; for EU: CE + NRMM if applicable)
Engine drain & non-DG declaration (for air)
IPPC stamp photo (for wooden crates)

10.3 Authority Data Sources

ZHEJAING Containerized Freight Index (SCFI): Zhejiang Shipping Exchange [9,15](@ref)
IATA Air Cargo Rates & Fuel Surcharge: IATA.org [1](@ref)
HS Code 8413 Official: WCO Harmonized System, also US HTS / China Customs
EU CBAM: European Commission Taxation & Customs [11,14](@ref)

Need a freight-included quote for your next gasoline / diesel / submersible / solar pump order? Jingong’s export team can provide FOB Ningbo, CIF to your port, or air-inclusive pricing with 3 carrier options. Request a Quote →

Gasoline Engine Water Pump Shipping: Sea Freight vs Air Freight (Cost & Time Guide for International Buyers)
