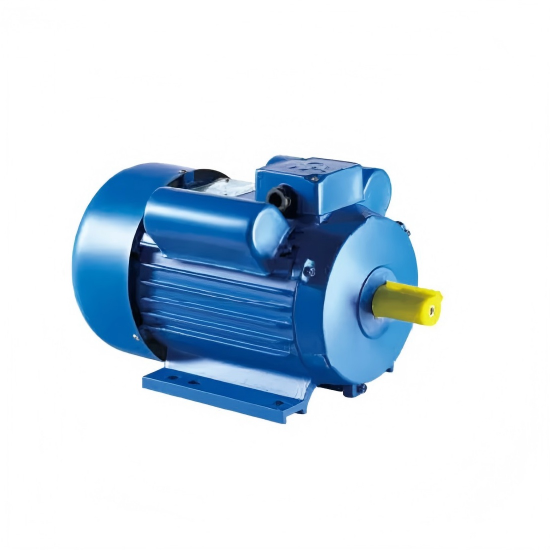

YY Series High Efficient Single Phase Power Supply Capacitor Start Induction Electric Motor

YY series heavy-duty single-phase motors are suitable for small machine tools and water pumps, especially for small workshops with only single-phase power. This series of motors adopts the latest technology design and is manufactured with high-quality materials, featuring excellent performance, safe and reliable operation, beautiful appearance, convenient maintenance, and compliance with IEC standards.

YY series motors are IP44 fully enclosed air-cooled (TEFC) motors. Motors with a rated power of 3 horsepower and below use capacitor starting. At rated voltage and 50Hz frequency, the starting torque is 3 times the rated torque; at 60Hz frequency, the starting torque is 2.75 times the rated torque. Motors with 4 horsepower and above use capacitor starting and operation mode, featuring high starting torque, smooth operation, low temperature rise, low noise, and good overload performance.

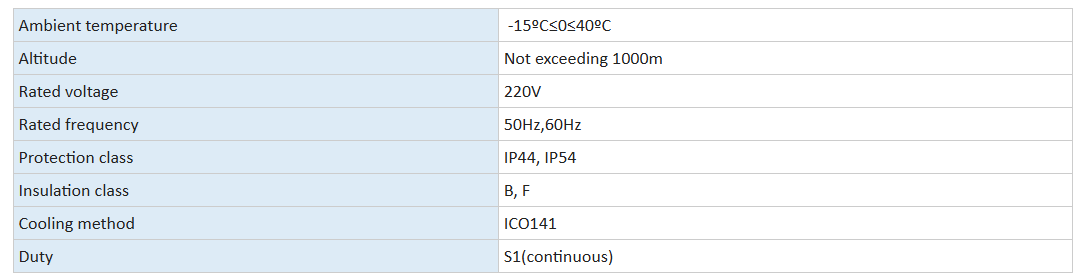

Operating conditions:

Ambient temperature: -15℃ to 40℃

Altitude: Not exceeding 1000 meters

Rated voltage: ±5%
