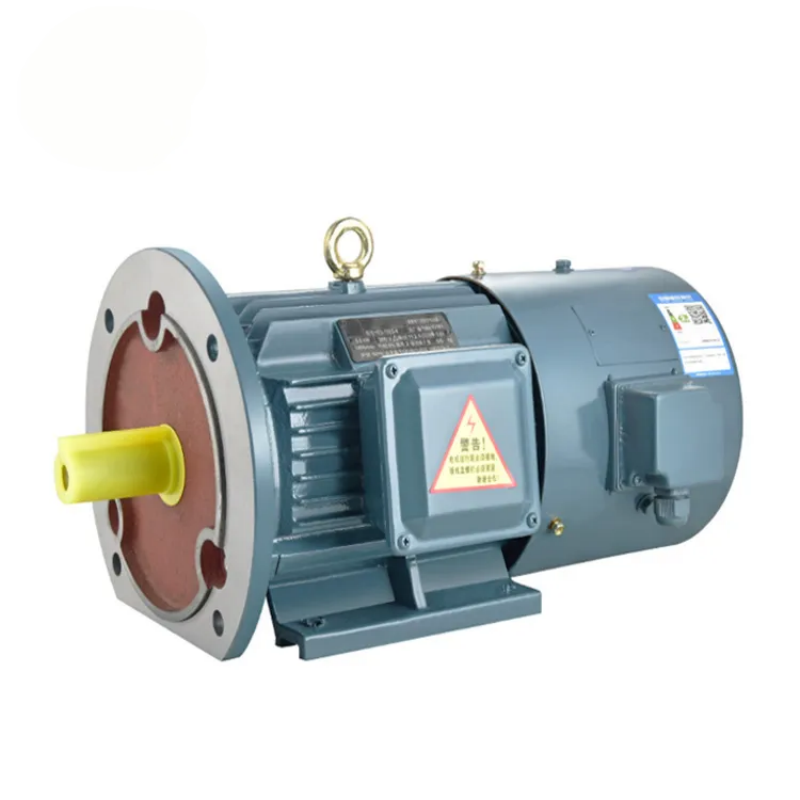

YVF Series Iron-shell Inverter Duty Three-phase Asynchronous Motor

YVF series inverter duty three-phase asynchronous motor are suitable for running in frequency change and speed regulation system whichthe power is suppled by a frequency converter.

This new series of product desingned unitedly in the country can be mated with all kinds of SPWM frequency changer and speed regulation devices andis equpped with a separate cooling fan which ensure the motor for good coolingat various speed.

They can be used in machine tool,metallugic industry,textile,printing and dyeing,transportation,chemical industry,mineand for seep regulation of fans and pumps.

Technical Data:
Centre height of frame:80-355mm
Power range:0.55-315KW
Rated voltage:380V or order
Rated frequency:50Hz or 60Hz
Protection class:IP54 or IP55
Insulation class:F
Duty type:S1
Fundamental frequency:50HZ
