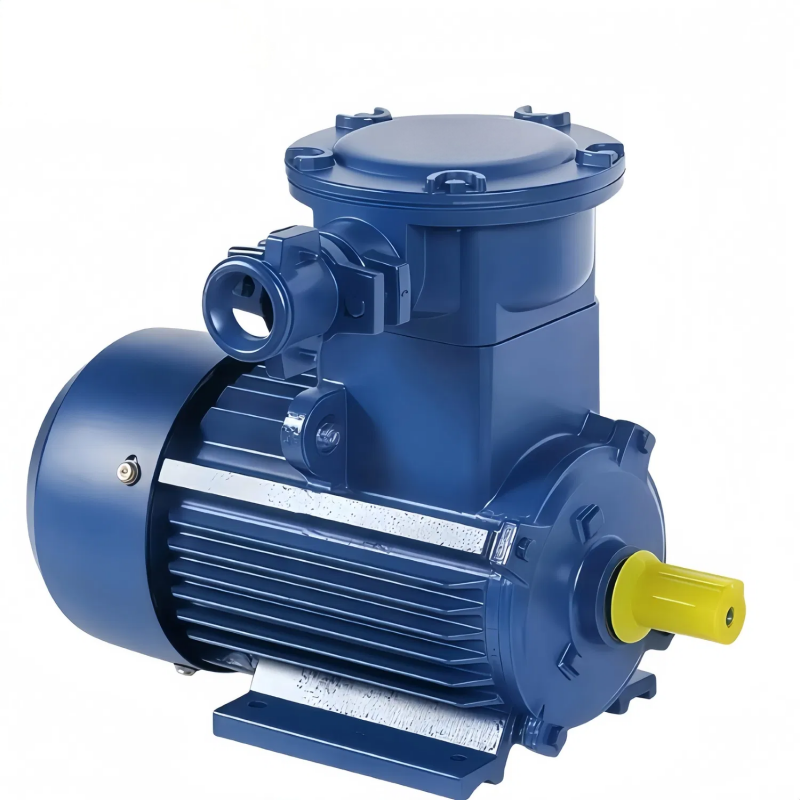

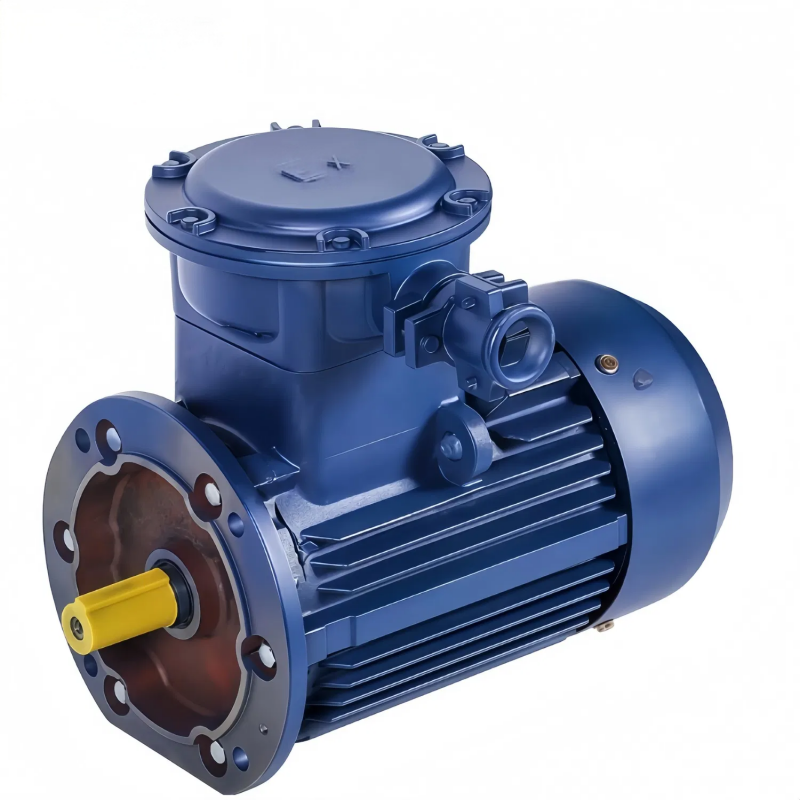

YBX4-CT4 Series Dustproof and Flameproof Three Phase Asynchronous Motor

YBX4-CT4 series dustproof and flameproof three phase asynchronous motor is in accordance with standard GB12476.1-2013 anc GB12476.52013.

It could be marked as Ex tD A21 IP65 T130℃ or Ex tD A22 IP65 T130℃ which is applicable to area21 orarea 22.

The temperature level is TI,T2,T3 and T4.

YBX4 series motor is used as mechanical equpment in different working environment, sightly and moderately corrosive,hot and damp area.indoorand outdoor.

Ambient Temperature: -15 °C~40 °C
Altitude: up to 1000 meters
Rated Power: 0.18kW-315kW
Frame Size: H63-H355
Frame Material: Cast lron
Rated Voltage: 220V-1140V
Rated Frequency: 50Hz/60Hz
Ingress Protection: IP54/IP55/IP56/IP65
Insulation Class: F/H
WorkDuty: S1-S6
