Description
Product Overview

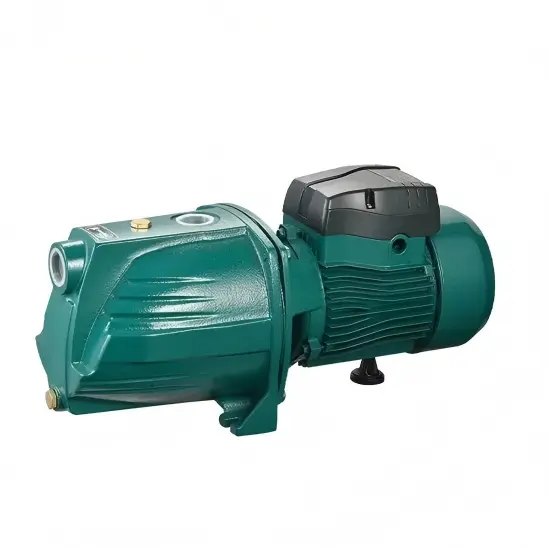

The Self-Priming Jet Pump integrates the advantages of centrifugal pumpsand self-priming pumps, designed for easy installation, high efficiency, energy saving, and low power consumption. It only requires initial priming (no repeated filling) and delivers stable performance for:
- Household water intake (well, river, reservoir)
- Downhole water extraction (deep well, borehole)
- Pipeline pressure boosting (low water pressure systems)
- Garden irrigation (lawn, flower beds, vegetable farms)
- Greenhouse & farmland water supply (drip irrigation, sprinkler systems)
Why choose this Self-Priming Jet Pump?
Backed by 15+ years of pump manufacturing experience (as a professional industrial pump factory in Zhejiang, China), our JET series offers:
Advanced Jet Technology-Combines centrifugal force + self-priming design to achieve high suction lift (up to 80m head) and stable flow (3–6 m³/h). Ideal for scenarios with low water sources or long-distance piping.
- Energy-Saving & Efficient-Precision-engineered impeller and motor deliver high efficiency (≥75%), reducing electricity costs by 20–30% vs. ordinary pumps. Rated power: 1.1kW–2.2kW (220V/50Hz, single-phase AC).
- Durable & Reliable Construction-Pump body: Cast iron (anti-corrosion, wear-resistant) for long service life. Seal system: Mechanical seal + oil seal to prevent leakage and extend motor life. Motor: Copper winding, Class B insulation, IPX4 waterproof (safe for outdoor use).
- Easy Installation & Maintenance-Compact design (portable weight: 8–15kg) with clear instruction manual. All models have a 25mm outlet diameter (compatible with standard PVC/galvanized pipes), and self-priming function eliminates complex priming procedures.
- Wide Application Scenarios-From household water supply to large-scale farm irrigation, JET pump adapts to diverse environments (residential, agricultural, light industrial).
Model Specification (Technical Parameters)
All models operate at 220V/50Hz (single-phase AC) with 2860r/min rated speed. Select your ideal model based on flow/head requirements:
Model | Flow Rate (m³/h) | Head (m) | Power (kW) | Voltage (V) | Frequency (Hz) | Rotational Speed (r/min) | Outlet Diameter (mm) |
|---|---|---|---|---|---|---|---|
JET-150 | 4 | 50–65 | 1.1 | 220 | 50 | 2860 | 25 |
JET-200 | 3–5 | 45–65 | 1.5 | 220 | 50 | 2860 | 25 |
JET-150L | 5 | 60–80 | 1.8 | 220 | 50 | 2860 | 25 |
JET-250 | 6 | 60–80 | 2.2 | 220 | 50 | 2860 | 25 |
