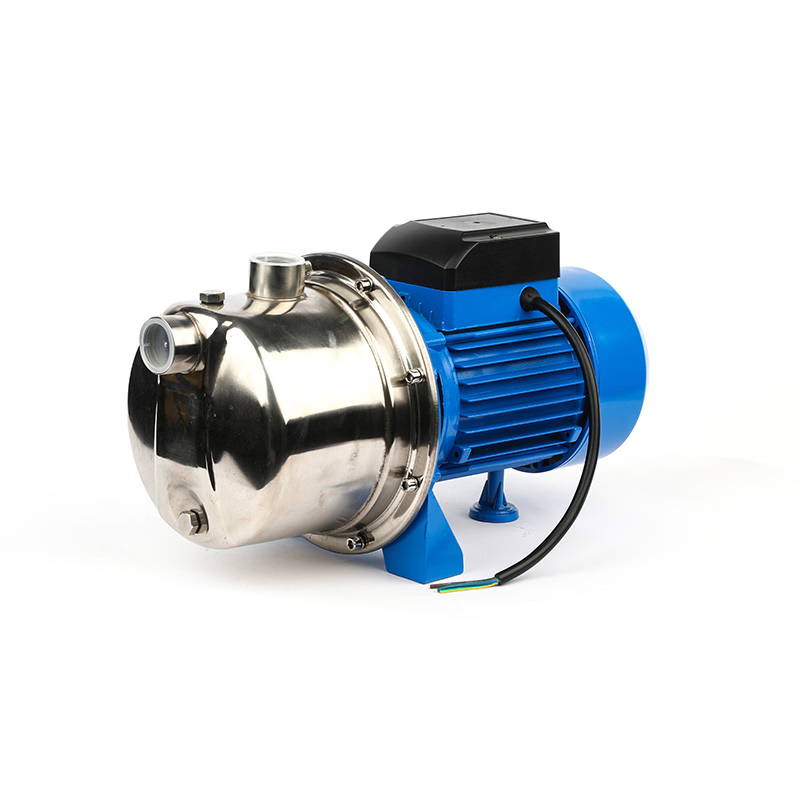

These series self priming jet pumps equipped with same Venturous system each.They are suitable to convey clean water and non-aggressive chemical fluids,even with liquid mixed with gas ,from well in continuous duty;they are also indicated to increase water pressure in centralized water systems ,for small irrigation systems ,for watering gardens ,for washing systems with water.

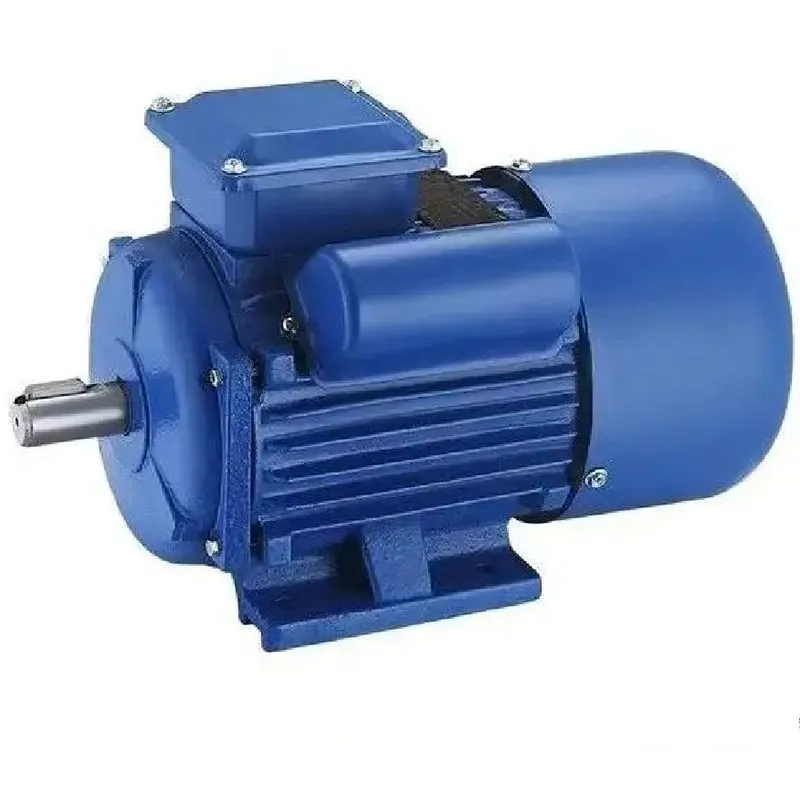

Motor:
• Two-pole induction motor(n=2850 r.p.m)
• Insulation Class F
• Protection IP44
• Continuous service S1
• Thermal protector for single phase
• Single-phase 220V/50Hz,60Hz if request
Three-phase 380V/50Hz,60Hz if request

Operating conditions:
• Liquid temperature up to 60°C
• Ambient temperature up to 40°C
• Total suction lift up to 9m

Component:
• Pump body:Cast iron
• Pump support:Cast iron
• Motor housing:Aluminum
• Impeller:Brass or PPO plastic
• Diffuser:PPO plastic
• Motor shaft:Carbon steel,AISI304 SS if request
• Mechanical seal:Ceramic/Graphite
