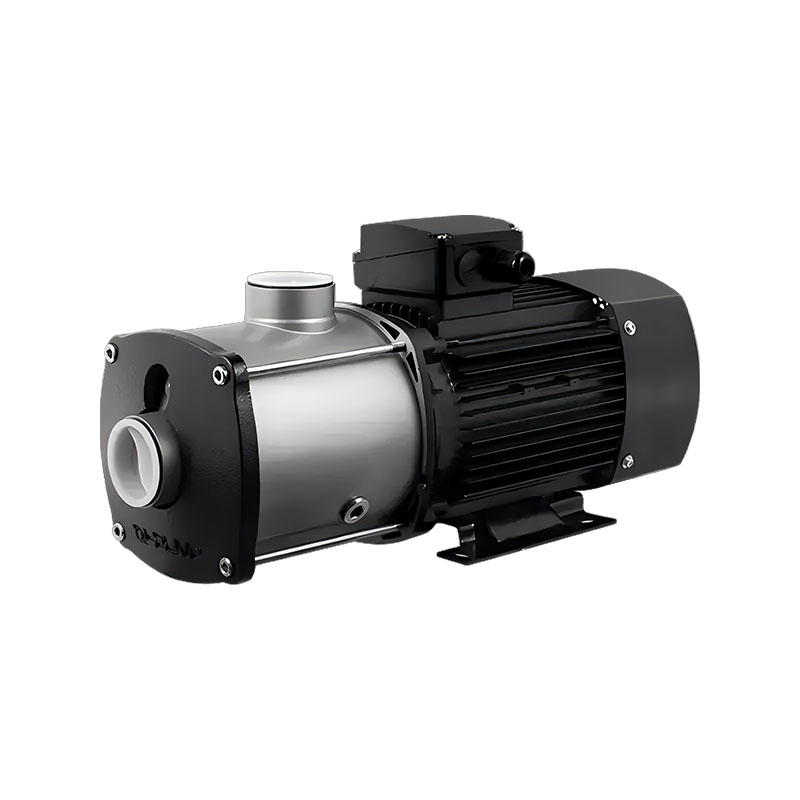

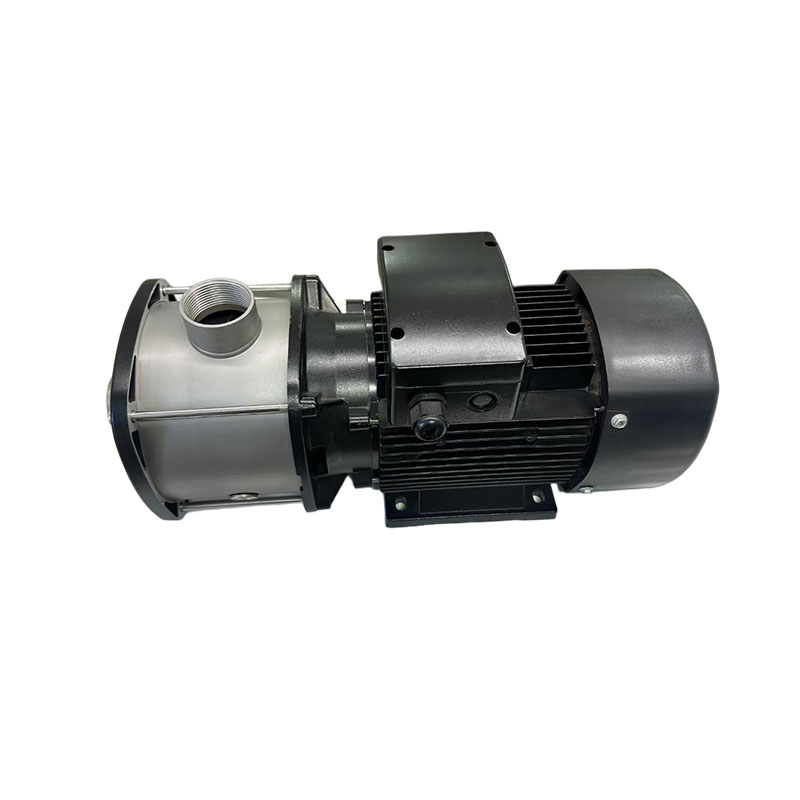

Advantages of Horizontal Centrifugal Pump

1. Easy Maintenance-Horizontal structure allows convenient access to internal parts for inspection, repair and routine upkeep without complicated disassembly.
2. Stable Operation & Low Vibration-Balanced horizontal layout delivers smooth running performance, less noise and vibration during long-hour continuous work.
3. Wide Application Compatibility-Perfect for water supply, agricultural irrigation, industrial water circulation and building water boosting, adapting to clean medium transportation.
4. Space-saving Installation-Flat horizontal footprint fits well on ground or equipment base, easy to install and fix in indoor pump rooms and outdoor stations.
5. High Cost Performance-Durable stainless steel pump head, stable efficiency and long service life greatly cut later operation and replacement costs.

Ideal for conveying thin, clean, non-flammable and non-explosive liquids free of solids or fibers, it supports both normal and high-temperature operations from -20°C to +104°C, with a working pH range of 6.5–8.5. It operates reliably at ambient temperatures up to 40°C, altitudes up to 1000m, and a maximum working pressure of 1.0MPa. The motor features a high-efficiency 2-pole design, available in single-phase (220–240V, 50Hz) or three-phase (380–415V, 50Hz) options, with customization for 60Hz or alternate voltages. Built with Class F insulation, IP55 protection, and a built-in thermal protector (for single-phase), the motor supports continuous duty (S1), up to 20 starts per hour, and over 100,000 lifetime starts—powered by durable C&U high-temperature bearings.

Note: The pump must be fully primed with water before operation to ensure normal function.

Features:

• All 304 stainless steel construction-material code
• Compact design
• Customized solutions
• High reliability
• Service-friendly
• Wide performance range
• Low noise level
• Electro-coated cast-iron parts
• Superior dry running capabilities
• Reduced footprint
• Low maintenance costs
• Single pump model for multiple applications
• Reduced downtime, High reliability

Applications:

• Washing and cleaning
• Water treatment
• Temperature control (heating/cooling)
• Chemical and pharmaceutical industries
• Building services
• Agricultural Irrigation
