Description
Product Introduction

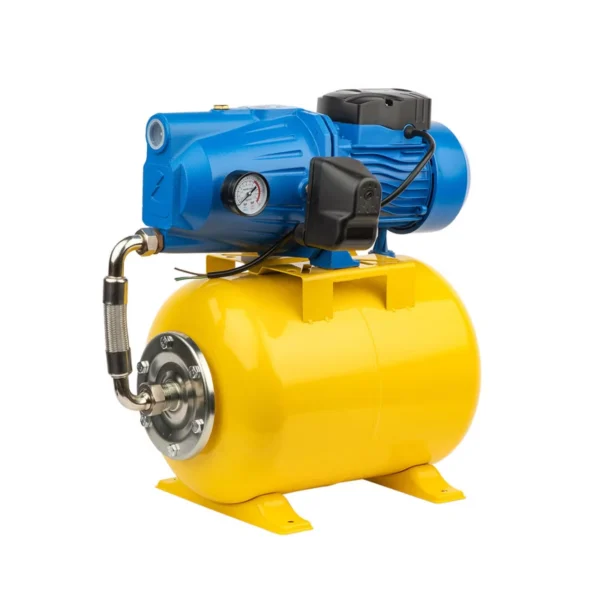

The automatic booster pump systems consist of a JET water pump, peripheral pump of centrifugal pump, with a pressure tank, an airtight pressure switch, a pressure gauge and connecting flexible pipe.Make the pump automatic, thus to apply more convenient.
The pressure tank equipped with a non-toxic rubber membrane, has been pre-filled with air pressure of approx 0.12MPa before leaving the workshop.
These systems give suitable mains water pressure as required by modern domestic applications and industrial applications, and will ensure enough water supply all user outlets. Most of the pumps included in our range of products can actually be used to form automatic booster systems.
Application Technical Specifications
- The booster pump have a compact size and simple to use.
- Heavy duty continuous work.
- Ambient temperature up to 40º C.
- The thermal protector is installed if required.
- The shaft is 45# steel or stainless steel and not easy to rust.
- 220-240V 50Hz power which is safer for your using.
- The stator is 100% copper wire with high quality.

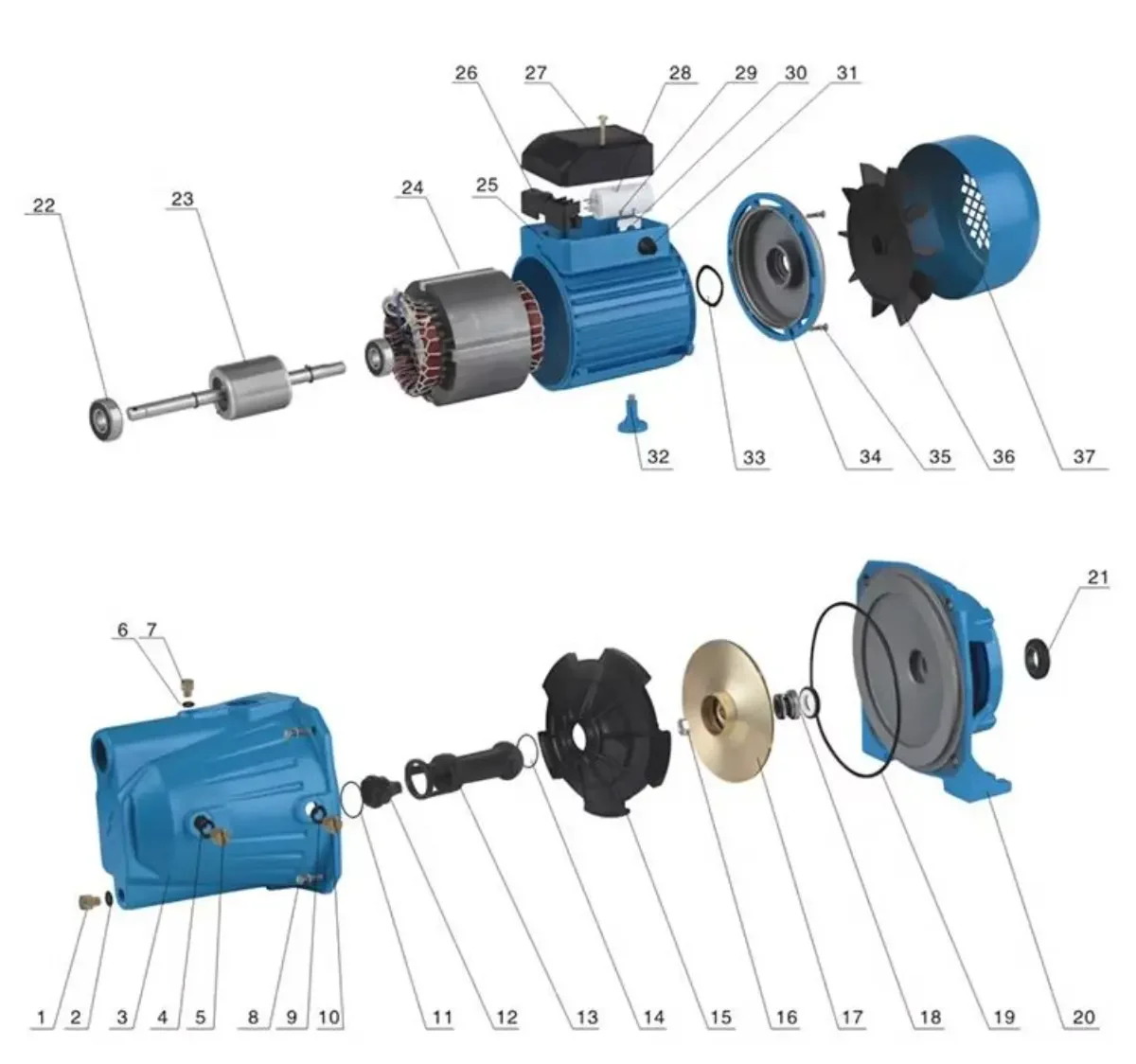

| No. | Description | No. | Description | No. | Description | No. | Description |
| 1 | Drain Plug | 12 | Nozzle | 23 | Shaft And Rotor | 34 | Motor Cover |
| 2 | “O”Ring For Drain Plug | 13 | Venturi | 24 | Stator | 35 | Screw |
| 3 | Pump Body | 14 | “O”Ring For Diffuser | 25 | Motor Case | 36 | Fan |
| 4 | “O”Ring For Gauge Plug | 15 | Diffuser | 26 | Terminal Board | 37 | Fan Cover |
| 5 | Gauge Plug | 16 | Lock Nut | 27 | Terminal Box | ||
| 6 | “O”Ring For Filling Plug | 17 | Impeller | 28 | Capacitor | ||
| 7 | Filling Plug | 18 | Mechanical Seal | 29 | Screw | ||
| 8 | Screw | 19 | “0”Ring For Pump Body | 30 | Cable Presser | ||
| 9 | “O”Ring For Switch Plug | 20 | Motor Bracket | 31 | Waterproof Fairlead | ||
| 10 | Switch Plug | 21 | Splash Guard | 32 | Foot | ||
| 11 | “O”Ring For Nozzle | 22 | Ball Bearing | 33 | Adjusting Ring |
